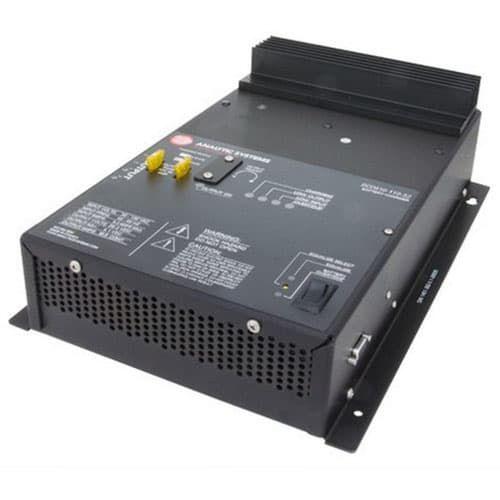

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCD610-300-24, 22A, 24V Out, 280-360V In, Iso DC/DC Battery Charger, 2 Bank

  • Model: BCD610-300-24
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$1,970.87 $1,516.05

Manufacturer Info

Features
  • 600 watts of charging power
  • Isolated DC DC Charger
  • One, two or three bank charging
  • Manual equalization mode
  • Two or three stage charging profiles
  • Low EMI
  • Adjustable float voltage
  • Temperature compensation
  • Three year warranty (parts & labor)
  • Product Datasheet | Download
  • Product Manual | Download
The traditional BCD610 series chargers feature 600 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
FunctionBattery Charger
ConversionDC to DC
Power Level600
Input Volts280 - 360 VDC
Output Volts24 VDC
Output Amps Continuous22
Input/Output IsolationYes
TechnologyAnalog
Charging Stages3
Temperature CompensationYes
EqualizeYes
Battery Banks2
Product Series on websiteBCD610
Option Codes'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
