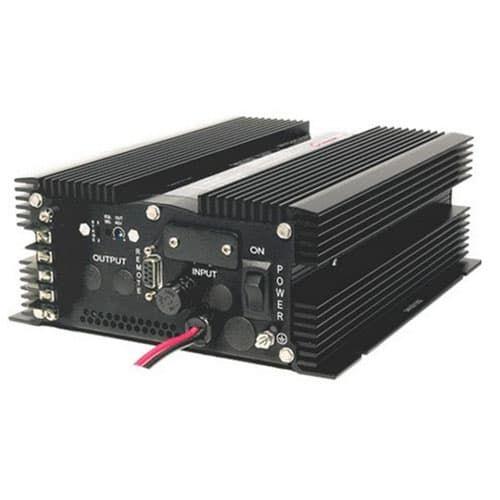

The BCD310 battery charger provides up to 300 watts to charge a 12 or 24 or 48 Volt battery system from a 110V, 220V or 300VDC source. The batteries must share a common ground but the source can be on a different positive or negative ground.
Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, 3-Bank charging, low output voltage, over temperature and an equalize charging cycle. Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input undervoltage shutdown, reverse battery protection, output overvoltage crowbar and a dry contact alarm relay output.
Optional features include a Digital Volt/Ammeter, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this DC Battery Charger.
Features- Fully Isolated Design
- Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
- Transient Voltage Suppressor
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Can be left permanently connected
- Spark free connection
- User selectable 2 or 3 stage charging profile
- Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
- Over-temperature shutdown
- Short circuit protection
- Output over-voltage crowbar
- Inrush Current Limiting with solid state bypass
- Dry contact output fail relay
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other Rugged Environments
- Electric Utilities and Substations
- Manufacturing Plants
- Steel Mills
- Military Applications (COTS)
- Industrial Controls
- OEM Applications
- Solar / Alternative Power Systems
- Fuel Cells
- Charge any DC/DC System
| Nominal (ip) | 110 | 250 | 300 |
|---|
| Actual (Vdc) | 100-140 | 230-280 | 280-360 |
|---|
| Input Amps (Max) | 3.8 | 1.7 | 1.4 |
|---|
| Input Fuse (MDA) | 5 | 3 | 2 |
|---|
| Noise on Input | < 25 mV |
|---|
| Output Nominal (op) | 12 | 24 | 48 |
|---|
| Output Volts (DC) | 13.6 0.05 | 27.2 0.05 | 54.4 0.05 |
|---|
| Absorption Voltage (Vdc) | 14.4 | 28.8 | 57.6 |
|---|
| Charging Amps | 20 | 10 | 5 |
|---|
| Absorption to Float | 3.0 Amps | 1.5 Amps | 0.75 Amps |
|---|
| Output Adjustment (Vdc) | 1.0 V |
|---|
| Output Fuses (AGC) | 25A | 15A | 10A |
|---|
| Battery Banks | 1, 2 (3 bank option available) |
|---|
| Battery Size (Amp Hours) | 80-120 | 40-60 | 20-30 |
|---|
| Output Crowbar | 16.0 0.5V | 32.0 1.0V | 63.9 2.0V |
|---|
| Output Ripple & Noise | < 25 mV |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Temperature Comp. | -30 mV/C | -60 mV/C | -120 mV/C |
|---|
| Duty Cycle | Continuous 100% for 24 hours per day |
|---|
| Efficiency | > 75% @ Maximum Output |
|---|
| Stages | 2 or 3 (user selectable) |
|---|
| Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE - db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Input-Case & Input-Output 1500VDCOutput-Case 500VDC (1500VDC @ 48V O/P) |
|---|
| Length | 9.6 in / 24.4 cm |
|---|
| Width | 8.2 in / 20.8 cm |
|---|
| Height | 3.5 in / 6.4 cm |
|---|
| Clearance | 1 inch (2.5 cm) all around |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 7.5 lb / 3.4 kg |
|---|
| Connections | Four contact output terminals |
|---|
| Warranty | 3 years |
|---|
| Safety | Designed to meet CSA 22.2.107.1 & UL458 |
|---|
