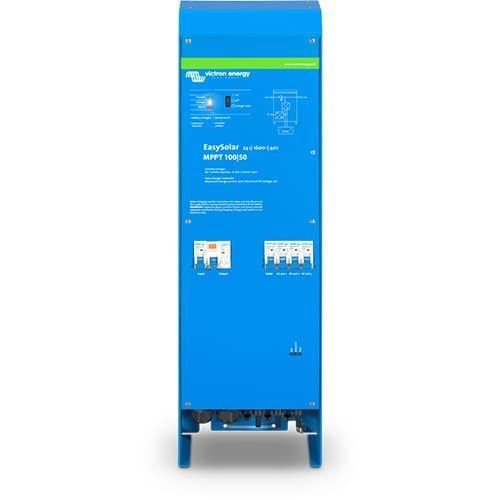

Note: *** This Product Is 230 VAC Output, European Voltage, Not For Use In The U.S.A ***EasySolar 12V and 24V, 1600VA All-in-one solar power solution The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The Solar Charge Controller: BlueSolar MPPT 100/50 Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40 The MPPT Charge Controller and the MultiPlus Compact Inverter/Charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
EasySolar 24V and 48V, 3000VA All-in-one solar power solution The EasySolar combines two MPPT Solar Charge Controllers and an inverter/charger in one enclosure. The product is easy to install, with a minimum of wiring.
Two solar charge controllers: 2x BlueSolar MPPT 100/50, 0r 2x BlueSolar MPPT 150/35 Up to six strings of PV panels can be connected to six sets of MC4 (PV - ST01) PV connectors.
The inverter/charger: MultiPlus Compact 24/3000/70-50 or 48/3000/35-50
The MPPT Charge Controllers and the MultiPlus Inverter/Charger share the DC battery connection. The batteries can be charged with solar power (2x BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
