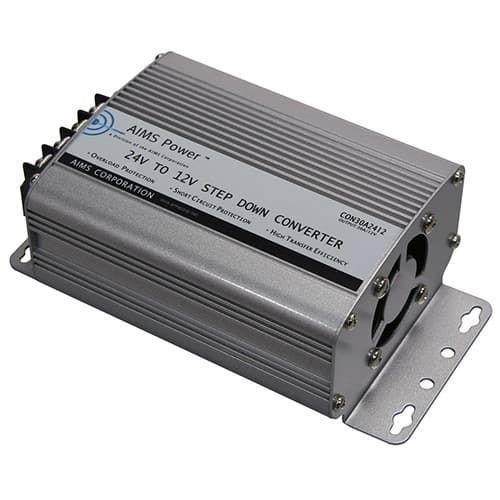

AIMS Power, CON30A2412, 30 Amp 24V to 12V DC-DC Converter

  • Model: CON30A2412
  • GTIN: 00840271003085
  • Manufactured by: AIMS Power
  • Condition: New
Price:

$136.50 $105.00

Manufacturer Info

This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 30 Amps. This a non-isolated 30 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007

Features
  • 30 Amp 24 volt to 12 volt dc to dc converter
  • Green LED on front panel to confirm power on
  • Terminal block for DC input/output
  • Over Temperature protection
  • Over Load protection
  • DC Input Low Battery Shutdown
  • DC Input High Battery Shutdown
  • DC Output Short Protection
  • DC Output Over Current Protection
  • DC Output Over Voltage Protection
  • Aluminum case for optimal cooling
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
  • CE EN61000-6-3:2007+A1:2011
  • CE EN61000-6-1:2007
  • Product Manual | Download
Specifications
  • DC Input Voltage: 20-37 Vdc
  • DC Output Voltage: 12.5-13.5 Vdc
  • Output Current: 30 amps
  • Output Current Max: 36 amps
  • Non-Isolated
  • Conversion Effiency: 90%
  • DC Input Low Battery Shutdown: 18 +/- 1 V
  • DC Input High Battery Shutdown: 38Vdc
  • DC Input Over Current Protection: 20A Fuse
  • DC Input Polarity Protection: Fuse Protected
  • Over Temperature Protection: 150 +/- 5 degrees F
  • DC Output Short Protection: Yes
  • DC Output Over Current Protection: 36 amps
  • DC Output Over Voltage Protection: TVS Diode
Dimensions
  • Unit Weight: 1.0 lbs.
  • Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches
  • Shipping Weight: 1 lbs.
