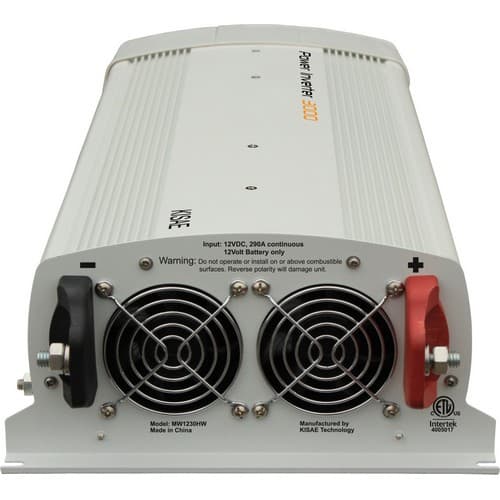

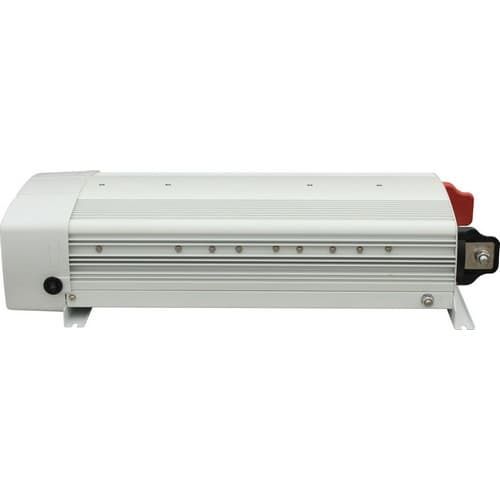

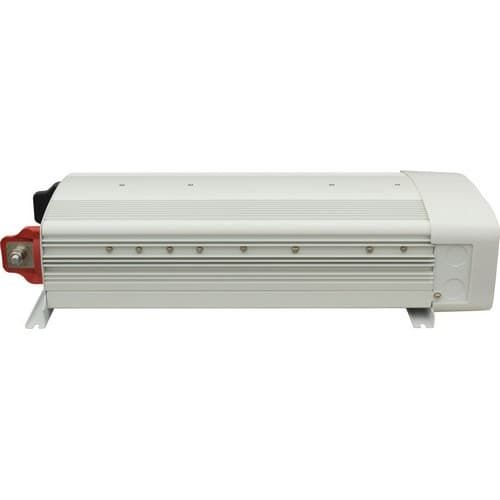

Convert Battery Power to Household AC Power
- Run your household appliances in your truck, boat or RV
- Powerful and economical modified sinewave inverters
- Tested and approved to cETLus regulatory standards for North America
- Tested and approved to CE regulatory standards for Europe
- International output sockets available
- Ideal for cars, boats, trucks, and RVs
Features and Benefits - Regulated output
- Low battery shutdown to prevent total battery discharge
- Built in LED display for battery status and load measurement
- Over temperature shutdown
- Simple to install
- Remote on/off switch
- Compact size for easy storage
- USB port for charging USB devices
- Product Specifications | Download
- Product Manual | Download
Dimensions (W x L x H) - MW 1230HW: 19.2 x 9.0 x 4.5 (488 x 229 x 114 mm)
Weight - MW 1230HW: 12.8lb (5.82kg)
| MW Series (Modified Sinewave) | MW 1230HW |
|---|
| AC Output |
|---|
| Power (Continuous) | 3000W |
|---|
| Power (Peak) | 6000W |
|---|
| Voltage / Frequency | 120 VAC / 60 Hz |
|---|
| Current | 25.0A |
|---|
| Waveform | Modified Sinewave |
|---|
| Peak Efficiency | 90% |
|---|
| AC Output Socket | NEMA 5-20 |
|---|
| DC Output |
|---|
| 5V USB |
|---|
| DC Input |
|---|
| Voltage (nominal) | 12.5Vdc |
|---|
| Operation Range | 10.5 – 15.5Vdc |
|---|
| Current (no load) | < 1.2A |
|---|
| Display Panel |
|---|
| Indicator (LED) | Status, Display |
|---|
| Digital Display | Input Voltage, Output Power, Warning and Error code |
|---|
| Protection |
|---|
| Input Undervoltage Shutdown | 10.5Vdc |
|---|
| Input Overvoltage Shutdown | 15.5Vdc |
|---|
| Regulatory Compliance |
|---|
| Markings | cETLus |
|---|
| Conformance | UL & CSA Standards |
|---|
| Enclosure |
|---|
| Weight | 12.8 lbs |
|---|
| Dimension | 19.2 x 9.0 x 4.5" |
|---|
