FREEDOM SW Xanbus System Control Panel Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers – 12V & 24V (part# 815-2012, 815-3012, 815-2024 and 815-3024).
Use the System Control Panel for quick and comprehensive control of the Freedom SW Inverter/Charger.

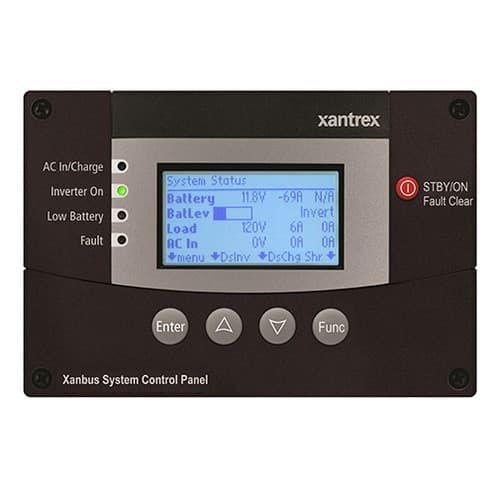

the Freedom SW Inverter/Charger.The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.
The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP’s software upgradeable to take advantage of new features and system enhancements.
- Data Sheet | Download
- System Control Panel Owners Guide (809-0921) – English | Download
- System Control Panel Owners Guide (809-0921) – French | Download
- Warranty Policy (North America) | Download
- Warranty Policy (Rest of the World) | Download
- System Control Panel Owners Guide (809-0922) – English/French | Download
Certifications- CSA certified to CSA 107.1-01 and UL 458 including Marine Supplement
- FCC part 15B Class B; Industry Canada ICES-0003 Class B
Applications- Recreational Vehicles
- Heavy Duty Trucks
- Work Trucks
- Custom Solutions
- Marine
Available in- Xanbus System Control Panel - For FREEDOM SW 3000 - 809-0910
- Xanbus System Control Panel - For FREEDOM SW 2012 & 3012 - 809-0921
Features- Provides comprehensive set-up and control of your Xantrex power system
- Graphical 128×64 pixel LCD display
- Control and display of multiple networked devices
