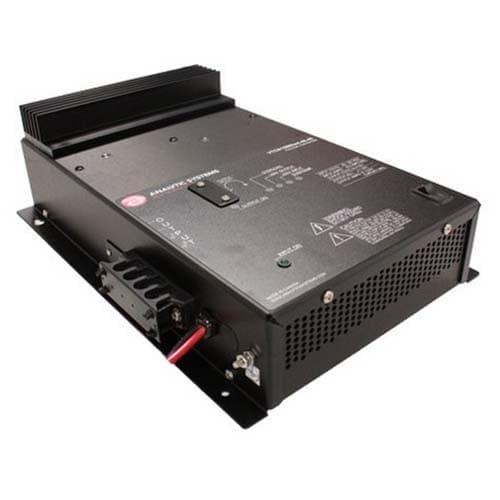

Analytic Systems, VTC615-72-48, 10/12.5A, 48V Out, 65-90V In, Iso DC/DC Voltage Converter
Manufacturer Info
Features
All new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard output voltage. Devices connected to the converter are protected by an output overvoltage crowbar circuit.
Optional features include a Remote Control, a 19" Rack Mount version, and/or a Digital Volt Ammeter to allow monitoring of output current and output voltage
- Ultra-quiet power sensitive electronics without interference
- Rugged and reliable to ensure years of safe and trouble free operation
- Power sensitive electronics without interference
- Fully isolated design
- Adjustable output voltage
- Audible and visual indicators for constant current, low input voltage, low output voltage and over-temperature
- Over-temperature shutdown
- Short circuit protection
- Output overvoltage crowbar
- Cycle by cycle current limiting
- Reverse input protection
- Transient voltage suppression
- Ultra-quiet low EMI operation
- Dry contact output fail relay
- Custom input / output voltages from 12 to 55 VDC
- Remote control option
- Digital volt/ammeter option
- 19" rackmount option (VTC615R)
- Wide-temperature operation available
- Conformal coating and/or harsh environment ruggedization available
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
All new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard output voltage. Devices connected to the converter are protected by an output overvoltage crowbar circuit.
Optional features include a Remote Control, a 19" Rack Mount version, and/or a Digital Volt Ammeter to allow monitoring of output current and output voltage
Function | Voltage Converter |
---|---|
Conversion | DC to DC |
Power Level | 600 |
Input Volts | 65 - 90 VDC |
Output Volts | 48 VDC |
Output Amps Continuous | 10 |
Output Amps Peak | 12.5 |
Input/Output Isolation | Yes |
Technology | Analog |
Product Series on website | VTC615 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested, 'B' Battery Backup |
