Features - Ultra-quiet
- Power sensitive electronics without interference
- Rugged and reliable to ensure years of safe and trouble free operation
- Adjustable output voltage
- Audible and visual indicators for constant current, low input voltage, low output voltage and over-temperature
- Over-temperature shutdown
- Short circuit protection
- Output overvoltage crowbar
- Cycle by cycle current limiting
- Reverse input protection
- Transient Voltage Suppression
- Ultra-quiet low EMI operation
- Dry contact output fail relay
- Custom input voltages from 105 to 360 VDC
- Custom output voltages from 12 to 55 VDC
- Remote control option
- Digital Volt/Ammeter option
- 19" Rackmount Option
- Wide-Temperature operation available
- Conformal Coating and/or Harsh Environment Ruggedization available
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download

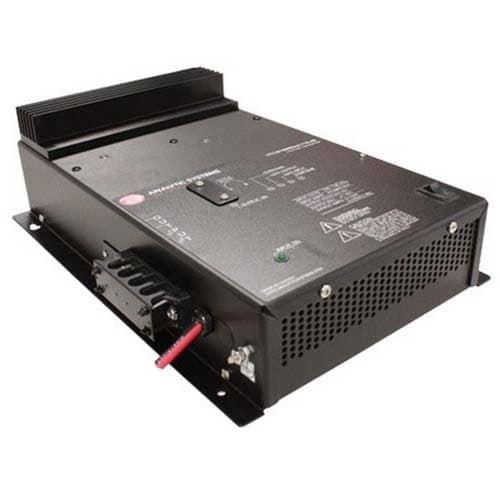

The model VTC610 Voltage Converter supplies 12V, 24V or 48 VDC from a 110V , 250VDC or 300VDC power source.
The Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and short circuit shutdown with automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special requirements.
Optional features include a Remote Control, a Digital Volt Ammeter, Battery Charging and/or a 19" Rack Mount version.
| Function | Voltage Converter |
|---|
| Conversion | DC to DC |
|---|
| Power Level | 600 |
|---|
| Input Volts | 100 - 140 VDC |
|---|
| Output Volts | 48 VDC |
|---|
| Output Amps Continuous | 10 |
|---|
| Output Amps Peak | 12.5 |
|---|
| Input/Output Isolation | Yes |
|---|
| Technology | Analog |
|---|
| Product Series on website | VTC610 |
|---|
| Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested, 'B' Battery Backup |
|---|
