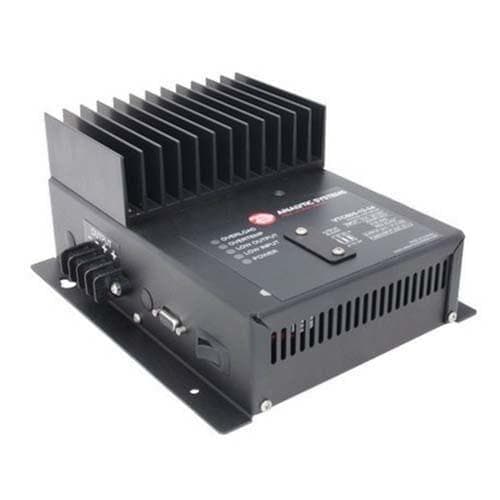

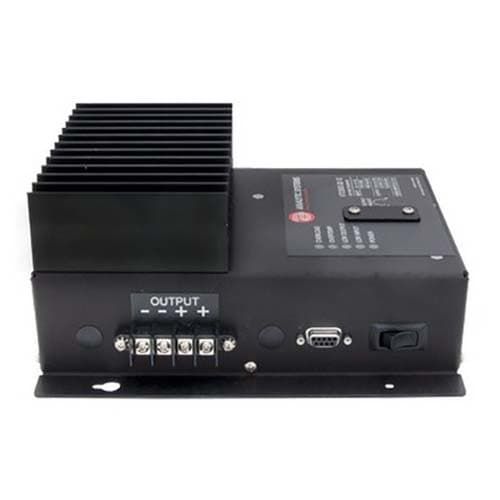

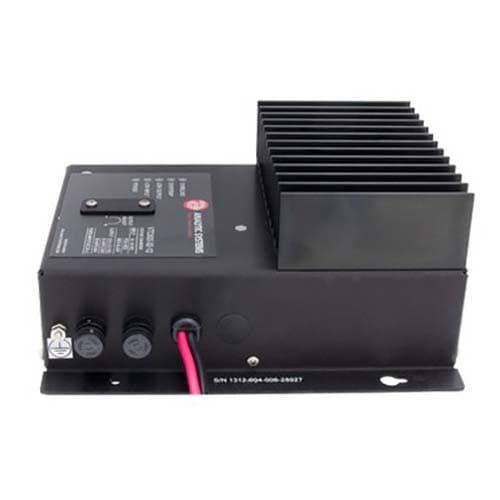

Analytic Systems, VTC605-12-12, Step-Up DC/DC Converter Analytic Systems, VTC605-12-12, Step-Up DC/DC Converter Analytic Systems, VTC605-12-12, Step-Up DC/DC Converter
Analytic Systems, VTC605-12-12, Step-Up DC/DC Converter
The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, VTC605-12-12, Step-Up DC/DC Converter

  • Model: VTC605-12-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $1,179.36  $907.20
    Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.

    Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.

    Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.

    Features
    • Vibration proof output voltage adjustment by 3 position DIP switch
    • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Current limiting protection
    • Reverse input protection
    • Output over-voltage crowbar
    • Dry contact output fail relay
    • Remote control option
    • Wide-Temperature operation Available
    • Parallel output diodes available
    • Conformal Coating and/or Harsh Environment Ruggedization Available
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other rugged environments
    • Mobile Offices (TV and Radio Vans)
    • Automotive / RV
    • Electric Utilities and Substations
    • Base Station Power(Radio & Telecommunications)
    • Industrial Controls(OEM Applications)
    • Field Work / Construction Sites
    • Solar/Alternative Power Systems
    • Any 12 or 24V Equipment
    Input Volts(DC)10.5-1810.5-28
    Input Amps (Max)50
    Input Fuse (AGC)25x 2 Amp
    Noise on Input< 50 mV
    Low InputVoltage Alarm10.5 VDC
    Current Limit50 Amps in
    Output Nominal (op)1224
    Output Volts (DC)Input - 1V or 13.5 to 17.0 Whichever is greaterInput - 1V or 24.0 to 27.5 Whichever is greater
    Output Adjustment* 45
    Output CrowbarProgrammed Output Volts x (1.3 1%)
    Output Ripple & Noise< 50 mV
    Low OutputVoltage AlarmProgrammed OutputVoltage minus 2.5 VDC
    Transient Response< 1V for 50% Surge
    Regulation(Line & Load)< +/- 0.5%
    Duty CycleContinuous 100% for 24 hours per day
    Efficiency> 90% @ Maximum Output
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationAny Input or Output to Case 500 VDCInput to Output – Common Negative
    Length9.1 in/ 23.1 cm
    Width7.8 in/ 19.8 cm
    Height4.3 in/ 10.8 cm
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight6.0 lb / 2.7 kg
    ConnectionsFour contact output terminals
    Warranty3 years
