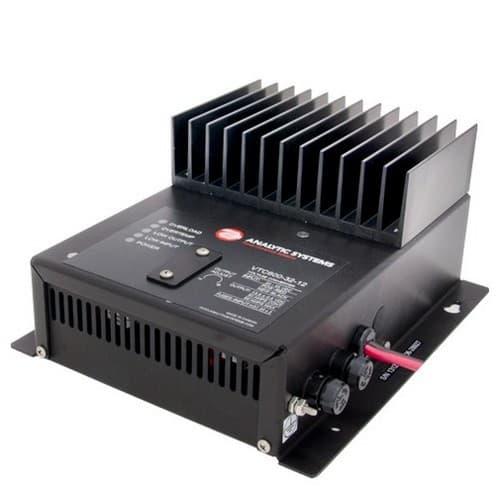

Analytic Systems, VTC600-32-12, 50/55A, 12V Out, 20-45V In, Non-Iso DC/DC Voltage Converter
Manufacturer Info
Features
Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and overload.
Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit shutdown, a dry contact alarm relay output and output overvoltage crowbar. Optional features include a remote panel monitoring with On-Off control.
- Ultra-quiet power sensitive electronics without interference
- Rugged and reliable to ensure years of safe and trouble free operation
- Adjustable output voltage
- Audible and visual indicators for constant current, low input voltage, low output voltage and over-temperature
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Current limiting protection
- Reverse input protection
- Output over-voltage crowbar
- Dry contact output fail relay
- Remote control option
- Wide Temperature operation Available
- Parallel output diodes available
- Conformal Coating and/or Harsh Environment
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and overload.
Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit shutdown, a dry contact alarm relay output and output overvoltage crowbar. Optional features include a remote panel monitoring with On-Off control.
Function | Voltage Converter |
---|---|
Conversion | DC to DC |
Power Level | 600 |
Input Volts | 20 - 45 VDC |
Output Volts | 12 VDC |
Output Amps Continuous | 50 |
Output Amps Peak | 55 |
Input/Output Isolation | No |
Technology | Analog |
Product Series on website | VTC600 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'O' Open Frame - No chassis, 'N' Encapsulated, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested |
