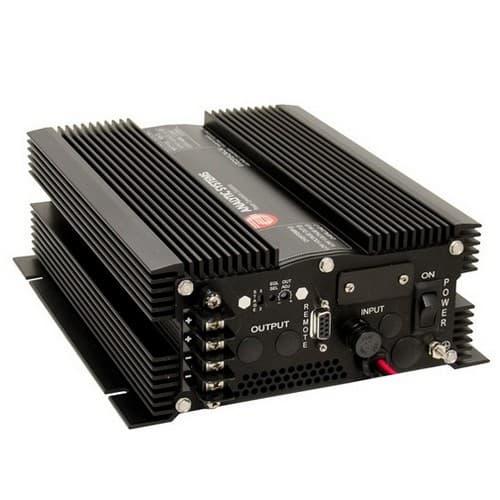

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, VTC315-48-12, 20/22.5A, 12V Out, 40-60V In, Iso DC/DC Voltage Converter

  • Model: VTC315-48-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$1,014.39 $780.30

Manufacturer Info

Features
  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation
  • Fully isolated design
  • Adjustable output voltage
  • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
  • Over-temperature shutdown
  • Short circuit protection
  • Output over voltage crowbar
  • Cycle by cycle current limiting
  • Reverse input protection
  • Transient Voltage Suppression
  • Ultra-quiet low EMI operation
  • Dry contact output fail relay
  • Custom input / output voltages from 8 to 55 VDC
  • Remote control option
  • Digital Volt/Ammeter option
  • Wide Temperature operation Available
  • Conformal Coating and/or Harsh Environment Ruggedization available
  • Three year parts and labour warranty
  • Product Datasheet | Download
  • Product Manual | Download
The model VTC315 Series Voltage Converter supplies either 12V, 24V, or 48 VDC from a 12V, 24V or 48VDC power source.

All new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.

The output voltage is easily adjusted 1.0 volts above or below the standard output voltage. Devices connected to the converter are protected by an output overvoltage crowbar circuit.
FunctionVoltage Converter
ConversionDC to DC
Power Level300
Input Volts40 - 60 VDC
Output Volts12 VDC
Output Amps Continuous20
Output Amps Peak25
Input/Output IsolationYes
TechnologyAnalog
Product Series on websiteVTC315
Option Codes'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested, 'B' Battery Backup
