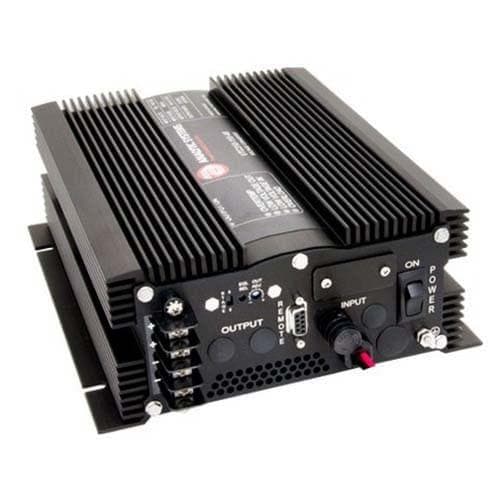

Analytic Systems, VTC310-250-48, 5.0/6.5A, 48V Out, 230-280V In, Iso DC/DC Voltage Converter
Manufacturer Info
Features
The Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and short circuit shutdown with automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special requirements.
Available options include a Remote Control and/or a Digital Volt Ammeter.
- Ultra-Quiet
- Power sensitive electronics without interference
- Rugged & Reliable
- Ensure years of safe and trouble free operation
- Fully isolated design
- Adjustable output voltage
- Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
- Over-temperature shutdown
- Short circuit protection
- Output over voltage crowbar
- Cycle by cycle current limiting
- Reverse input protection
- Transient Voltage Suppression
- Ultra-quiet low EMI operation
- Dry contact output fail relay
- Custom input / output voltages from 8 to 360 VDC
- Remote control option
- Digital Volt/Ammeter option
- Wide Temperature operation Available
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
The Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and short circuit shutdown with automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special requirements.
Available options include a Remote Control and/or a Digital Volt Ammeter.
Function | Voltage Converter |
---|---|
Conversion | DC to DC |
Power Level | 300 |
Input Volts | 230 - 280 VDC |
Output Volts | 48 VDC |
Output Amps Continuous | 5 |
Output Amps Peak | 6.5 |
Input/Output Isolation | Yes |
Technology | Analog |
Product Series on website | VTC310 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'D' Paralleling Diodes, 'C' MIL461F & MIL810G Tested, 'B' Battery Backup |
