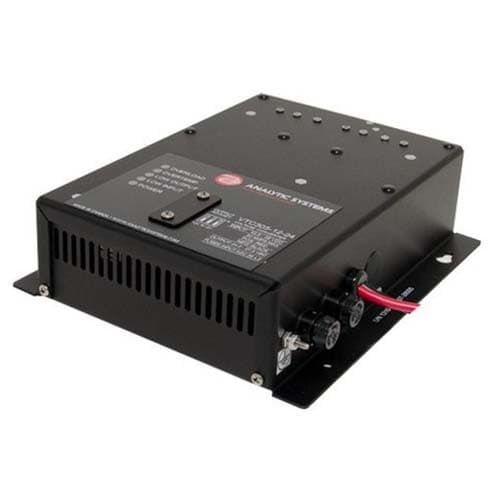

Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.
Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.
Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.
Features- Vibration proof output voltage adjustment by 3 position DIP switch
- Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Current limiting protection
- Reverse input protection
- Output over-voltage crowbar
- Dry contact output fail relay
- Remote control option
- Wide-Temperature operation Available
- Parallel output diodes available
- Conformal Coating and/or Harsh Environment Ruggedization Available
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other rugged environments
- Mobile Offices (TV and Radio Vans)
- Automotive / RV
- Electric Utilities and Substations
- Base Station Power(Radio & Telecommunications)
- Industrial Controls(OEM Applications)
- Field Work / Construction Sites
- Solar/Alternative Power Systems
- Any 12 or 24V Equipment
| Input Volts(DC) | 10.5-18 | 10.5-28 |
|---|
| Input Amps (Max) | 30 |
|---|

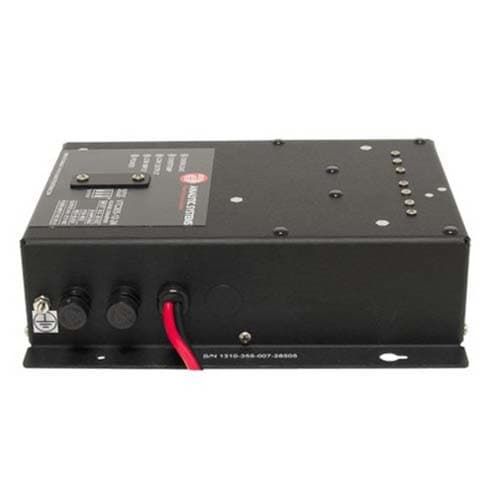

| Input Fuse (AGC) | 20x 2 Amp |
|---|
| Noise on Input | < 25 mV |
|---|
| Low InputVoltage Alarm | 10.5 VDC |
|---|
| Current Limit | 30 Amps in |
|---|
| Output Nominal (op) | 12 | 24 |
|---|
| Output Volts (DC) | Input - 1V or 13.5 to 17.0 Whichever is greater | Input - 1V or 24.0 to 27.5 Whichever is greater |
|---|
| Output Adjustment | * 27 |
|---|
| Output Crowbar | Programmed Output Volts x 1.2 |
|---|
| Output Ripple & Noise | < 25 mV |
|---|
| Low OutputVoltage Alarm | Programmed OutputVoltage minus 2.5 VDC |
|---|
| Transient Response | < 1V for 50% Surge |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Duty Cycle | Continuous 100% for 24 hours per day |
|---|
| Efficiency | > 90% @ Maximum Output |
|---|
| Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Any Input or Output to Case 500 VDCInput to Output – Common Negative |
|---|
| Length | 9.1 in/ 23.1 cm |
|---|
| Width | 7.8 in/ 19.8 cm |
|---|
| Height | 2.5 in/ 6.4 cm |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 4.0 lb / 1.8 kg |
|---|

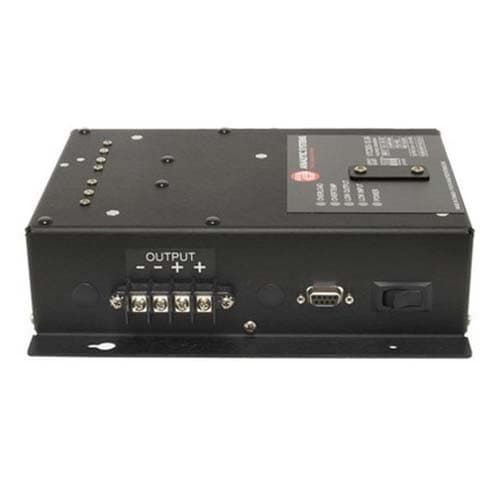

| Connections | Four contact output terminals |
|---|
| Warranty | 3 years |
|---|
