Home Renewable Energy Analytic Systems Analytic Converters Analytic Systems VTC300-32-12 Step-Down DC/DC Converter
Analytic Systems VTC300-32-12 Step-Down DC/DC Converter Analytic Systems VTC300-32-12 Step-Down DC/DC Converter Analytic Systems VTC300-32-12 Step-Down DC/DC Converter

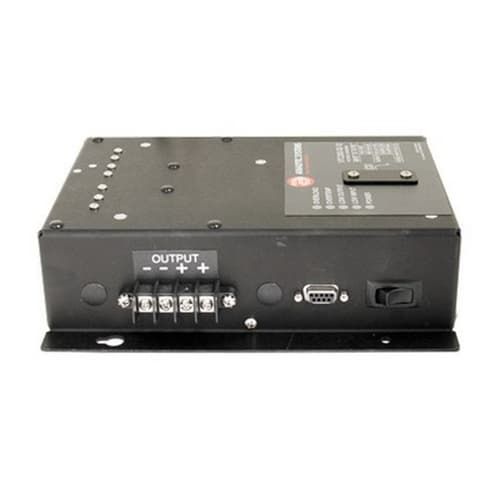

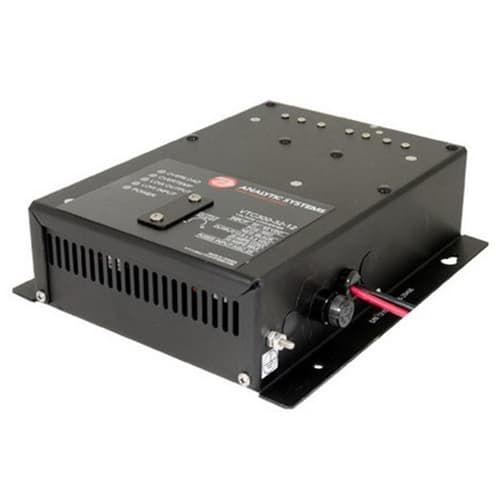

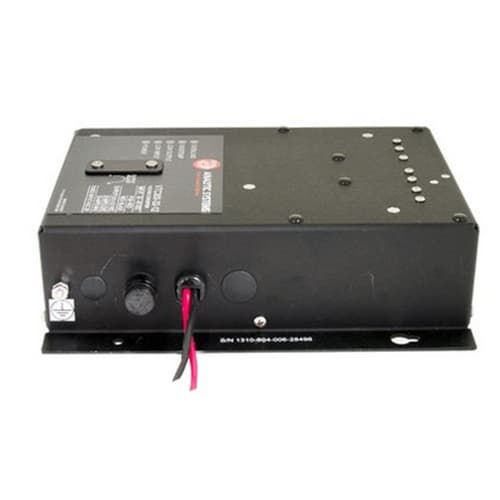

Analytic Systems VTC300-32-12 Step-Down DC/DC Converter

Analytic Systems VTC300-32-12 Step-Down DC/DC Converter

  • Model: VTC300-32-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Estimated Delivery: Apr 11th - Apr 17th
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $589.68  $453.60
    This all new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation.

    Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and overload.

    Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit shutdown, a dry contact alarm relay output and output overvoltage crowbar. Optional features include a remote panel monitoring with On-Off control.

    We are confident that you will get many years of reliable service from this Voltage Converter.

    Features
    • Adjustable output voltage
    • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Current limiting protection
    • Reverse input protection
    • Output over-voltage crowbar
    • Dry contact output fail relay
    • Remote control option
    • Wide-Temperature operation Available
    • Parallel output diodes available
    • Conformal Coating and/or Harsh Environment Ruggedization Available
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other rugged environments
    • Mobile Offices (TV and Radio Vans)
    • Automotive / RV
    • Electric Utilities and Substations
    • Base Station Power(Radio & Telecommunications)
    • Industrial Controls(OEM Applications)
    • Field Work / Construction Sites
    • Solar/Alternative Power Systems
    • Emergency Backup Power (UPS)
    Model NumberVTC300-32-12VTC300-32-24
    Input Volts(DC)20-4530-45
    Input Amps (Max)2022
    Input Fuse (AGC)25A
    Noise on Input< 25mV
    Output Nominal (op)1224
    Output Volts (DC)13.6 0.0527.2 0.05
    Output Adjustment0.05
    Output Current(Amps)25 cont./ 35 peak20 cont./ 25 peak
    Current Limit37 Amps27 Amps
    Output Crowbar16.0 0.5V32.0 1.0V
    Output Ripple & Noise< 25 mV
    Transient Response< 1V for 50% Surge
    Regulation(Line & Load)< +/- 0.5%
    Duty CyclePeak 20% for 10 min maximumContinuous 100% for 24 hours per day
    Efficiency> 90% @ Maximum Output
    Operating Temp. Range-25 to +50C @ maximum output Derate Linearly 2.5% perC from 50C(Optional -50C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationAny Input or Output to Case 500 VDCInput to Output – Common Negative
    Length9.1 in/ 23.1 cm
    Width7.8 in/ 19.8 cm
    Height2.5 in/ 6.4 cm
    MaterialMarine Grade Aluminium
    FinishBlack Anodize
    FasteningsAll 18-8 Stainless Steel
    Weight4.0 lb / 1.8 kg
    Connections#12 AWG Input Wires (Positive & Negative)Four contact output terminal
    Warranty3 years
