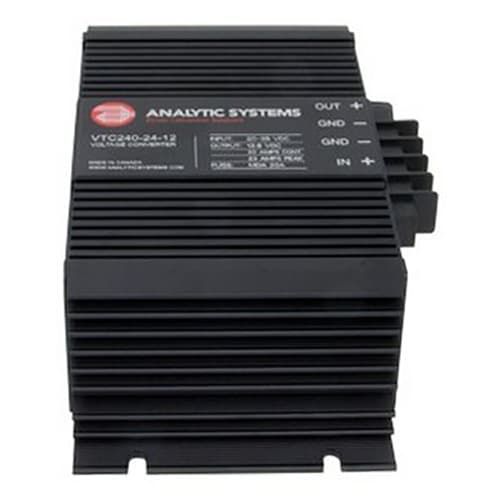

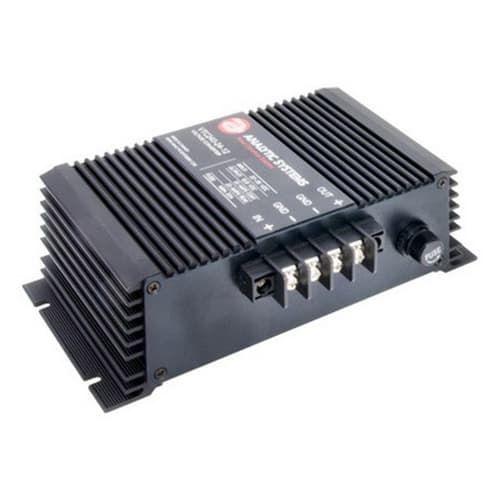

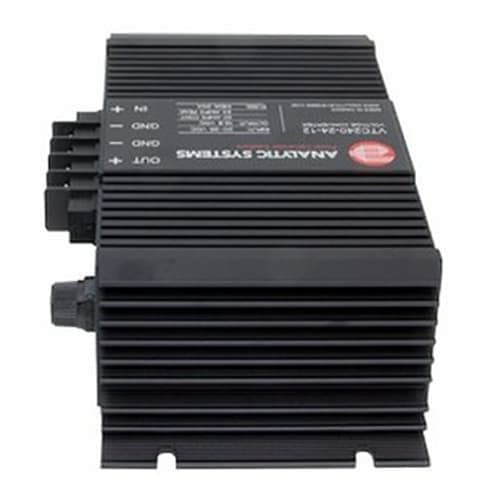

Home Analytic Systems Analytic Converters Analytic Systems, VTC240-24-12, Light Duty DC/DC Converter
Analytic Systems, VTC240-24-12, Light Duty DC/DC Converter Analytic Systems, VTC240-24-12, Light Duty DC/DC Converter Analytic Systems, VTC240-24-12, Light Duty DC/DC Converter
Analytic Systems, VTC240-24-12, Light Duty DC/DC Converter

Analytic Systems, VTC240-24-12, Light Duty DC/DC Converter

  • Model: VTC240-24-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Estimated Delivery: May 20th - May 26th
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $480.87  $369.90
    The VTC140 and VTC240 Voltage Converters are variable duty cycle switching power supplies incorporating state of the art switchmode technology for unmatched efficiency and ultra-quiet operation.

    Multiple stages of filtering reduce radiated or conducted noise to very low levels. They can be run from a 24 VDC or 28 VDC battery system. Safety features include reverse input protection, current limiting, and output overvoltage crowbar.

    We are confident that you will get many years of reliable service from these Voltage Converters.

    Features
    • Input voltage range allows operation from 24 or 28 volt batteries
    • Reverse input protection
    • Rugged Design suited for Mobile Environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Short circuit protection
    • Output over-voltage crowbar
    • Run 12 volt electronics from 24 volt systems CD or VHF Radios to 100Watts, GPS receivers, Autopilots, Sound equipment, 12V lightingsystems, etc.
    • Easily Mounted
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other rugged environments
    • Automotive / RV
    • Solar / Alternative Power Systems
    • Oil Patch
    • Base Station Power(Radio & Telecommunications)
    • Industrial Controls(OEM Applications)
    • Field Work / Construction Sites
    • Security Systems
    • Most 12V Equipment
    Model NumberVTC140-24-12VTC240-24-12
    Input Volts (DC)20-3520-35
    Input Amps (Max)11.617.8
    Input Fuse (MDA)1220
    Noise on Input< 10mV
    Output Nominal (op)12
    Output Volts (DC)13.8 0.1
    Output Amps12 cont. / 15 peak20 cont. / 23 peak
    Output Crowbar16.0 0.5V
    Output Ripple & Noise< 10 mV
    Transient Response< 1V for 50% Surge
    Regulation(Line & Load)< +/- 0.5%
    Duty CyclePeak 20% for 5 min maximumContinuous 100% for 24 hours per day
    Efficiency> 88% @ Maximum Output
    Operating Temp. Range0 to +40C @ maximum output Derate Linearly 2.5% perC from 40C
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationAny Input or Output to Case 500 VDC Input to Output – Common Negative)
    Length7.9 in/ 20.1 cm
    Width4.0 in/ 10.2 cm
    Height2.4 in/ 6.1 cm
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight3.0 lb /1.4 kg 3.5 lb /1.6 kg
    ConnectionsFour contact output terminals
    Warranty3 years
