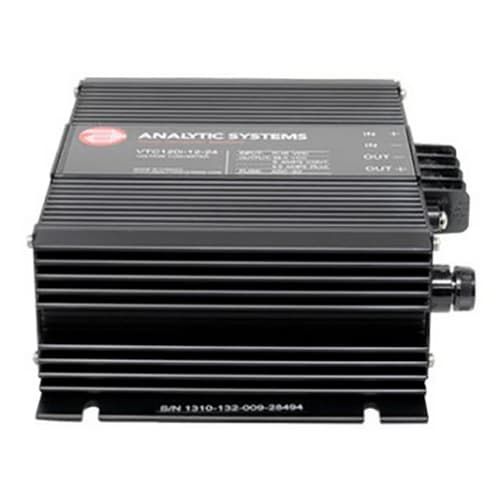

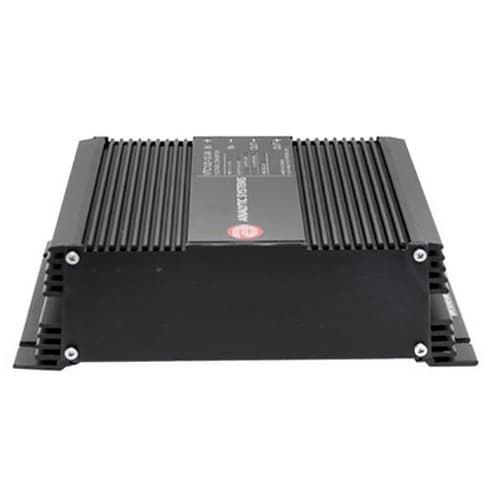

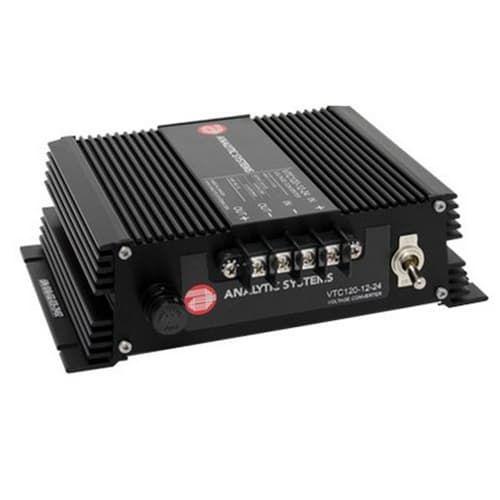

Analytic Systems VTC120-24-12 Step-Down DC/DC Converter
Model: VTC120-24-12
Manufactured by: Analytic Systems
Condition: New
Estimated Delivery: 2 to 3 Weeks
Estimated Delivery:
Dec 18th - Dec 24th
In Stock
Out of Stock
Lead Time To Ship May Vary
Price:
$409.38 $327.50
Save: 20% off
The VTC120 Series Voltage Converter is a variable duty cycle switching power supply with a precision linear regulator output (except for the VTC120nr-12-24). This model is common negative. This means that the input negative (ground) connection and the output negative (ground) connection are common or tied together.
Applications include running 24V PLC controls or electronic equipment from a 12 Volt battery system, or any other application requiring 24 VDC when only 12 VDC is available.
We are confident that you will get many years of reliable service from this Voltage Converter.
Features- Versatile design with wide variation of input and output combinations
- Precision linear regulator final stage for ultra clean output for all units (except VTC120nr-12-24)
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Ideal for running 24V PLC controls from 12 VDC
- Reverse input protection
- Short circuit protection
- Can be built to Class 1, Division 2 Standards for Hazardous Duty
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Programmable Logic Controllers (PLC's)
- Rugged Mobile Environments
- Automotive / RV / Marine
- Electric Utilities and Substations
- Oil Patch
- Telecommunications Power
- Industrial Controls(OEM Applications)
- Field Work / Construction Sites
- Solar/Alternative Power Systems
- Security Systems Power
- Any 12 or 24 Equipment
| Model-VTC120 | -12-24 | h-12-12 | nr-12-24 |
|---|
| Input Volts(DC) | 11-15 | 11-15 | 11-14 |
|---|
| Input Amps(Max) | 15 | 11 | 15 |
|---|
| Input Fuse(AGC) | 20 | 15 | 25 |
|---|
| Noise on Input | < 25mV |
|---|
| Output Volts (DC) | 24.0 | 12.0 | 25.0 5V |
|---|
| Output Amps | 5 Cont./5.5 Peak | 7.5 Cont./8.0 Peak | 5 Cont./9 Peak |
|---|
| Output Ripple & Noise | < 5 mV |
|---|
| Transient Response | < 1V for 50% Surge |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Duty Cycle | Peak 20% for 5 min maximumContinuous 100% for 24 hours per day |
|---|
| Efficiency | > 80% @ Maximum Output |
|---|
| Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Any Input or Output to Case 500 VDCCommon Negative |
|---|
| Length | 7.9 in/ 20.1 cm |
|---|
| Width | 6.0 in/ 15.2 cm |
|---|
| Height | 2.4 in/ 6.1 cm |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 2.5 lb / 1.1 kg |
|---|
| Connections | Four contact output terminals |
|---|
| Warranty | 3 years |
|---|
