Analytic Systems, VTC1015-24-48, Isolated DC/DC Converter Analytic Systems, VTC1015-24-48, Isolated DC/DC Converter Analytic Systems, VTC1015-24-48, Isolated DC/DC Converter
Analytic Systems, VTC1015-24-48, Isolated DC/DC Converter

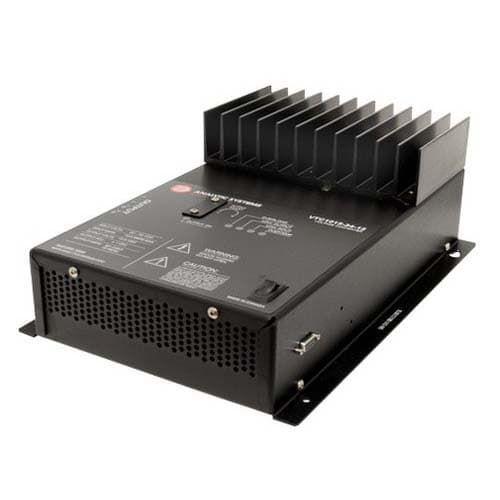

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, VTC1015-24-48, Isolated DC/DC Converter

  • Model: VTC1015-24-48
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $1,934.01  $1,487.70
    The model VTC1015 Voltage Converter supplies either 12V, 24V, or 48 VDC from a 24V, 48V, or 72VDC power source.

    All new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.

    The output voltage is easily adjusted 1.0 volts above or below the standard output voltage. Devices connected to the converter are protected by an output overvoltage crowbar circuit.

    Optional features include a Remote Control, a 19 Rack Mount version, and/or a Digital Volt Ammeter to allow monitoring of output current and output voltage.

    • Fully Isolated Design
    • Transient Voltage Suppressor
    • Adjustable output voltage
    • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
    • Over-temperature shutdown
    • Short circuit protection
    • Output overvoltage crowbar
    • Cycle by cycle current limiting
    • Reverse input protection
    • Ultra-quiet low EMI operation
    • Dry contact output fail relay
    • Thermostatically controlled fan
    • Custom input / output voltages from 12 to 55 VDC
    • Remote control option
    • 19” Rackmount option
    • Wide-Temperature operation Available
    • Conformal Coating and/or Harsh Environment Ruggedization Available
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    • Telecom Power Plants
    • Electric Utilities and Substations
    • Marine & other rugged environments
    • Base Station Power (Radio & Telecommunications)
    • Industrial Controls (OEM Applications)
    • Solar / Alternative Power Systems
    • Emergency Power Backup (UPS)
    Nominal VDC (ip)244872
    Actual (Vdc)22-3544-6065-90
    Input Amps (Max)72.636.323
    Input Fuse (ATC)3x 252x 201x 30
    Noise on Input< 50mV
    Output Nominal (op)122448
    Output Volts (DC)13.6 0.0527.2 0.0554.4 0.05
    Output Amps60cont./70peak40cont./45peak20cont./22.5peak
    Output Adjustment 1.0V
    Output Crowbar16.0 0.5V32.0 1.0V63.9 2.0V
    Switching Frequency60 2 KHz
    Idle Power< 10 Watts
    Output Ripple & Noise< 50 mV
    Transient Response< 2V for 50% Surge
    Regulation(Line & Load)< +/- 0.5%
    Duty CyclePeak 20% for 10 min maxContinuous 100% for 24 hours per day
    Efficiency> 82.6% @ Maximum Output
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft (34.5 dB when fan operating)
    Typical Service Life>10 years (87,600 hours)
    IsolationInput-Case & Input-Output 1500VDC (500V @ 24V I/P) Output-Case 500VDC (1500VDC @ 48V O/P)
    Length14.5 in/ 36.8 cm
    Width9.9 in/ 25.1 cm
    Height5.5 in/ 14.0 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight12.0 lb / 5.5 kg
    ConnectionsFour contact output terminals
    Warranty3 years
    SafetyDesigned to meet CSA & UL458
