Analytic Systems, VTC1000-250-48, Isolated DC/DC Converter
The images shown are for illustration purposes only and may not be an exact representation of the product

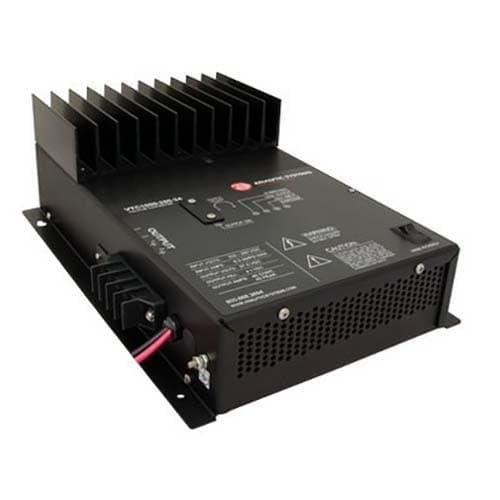

Analytic Systems, VTC1000-250-48, Isolated DC/DC Converter

  • Model: VTC1000-250-48
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $2,248.16  $1,729.35
    The model VTC1000 Voltage Converter supplies 12V, 24V or 48 VDC from a 110V, 220V or 300 VDC power source. Other input or output voltages up to 360 volts are also available by special order.

    The all-new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and short circuit shutdown with automatic recovery.

    The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special requirements.

    Optional features include a Remote Control, a Digital Volt Ammeter, Battery Charging and/or a 19 Rack Mount version.

    Features
    • Fully Isolated Design
    • Adjustable output voltage
    • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
    • Over-temperature shutdown
    • Short circuit protection
    • Output overvoltage crowbar
    • Cycle by cycle current limiting
    • Reverse input protection
    • Transient Voltage Suppression
    • Ultra-quiet low EMI operation
    • Dry contact output fail relay
    • Thermostatically controlled fan
    • Custom input voltages from 105 to 360 VDC
    • Custom output voltages from 12 to 55 VDC
    • Remote control option
    • 19” Rackmount Option
    • Wide-Temperature operation Available
    • Conformal Coating and/or Harsh Environment Ruggedization Available
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other rugged environments
    • Electric Utilities and Substations
    • Manufacturing Plants
    • Steel Mills
    • Military Applications (COTS)
    • Industrial Controls
    • OEM Applications
    • Solar / Alternative Power Systems
    • Fuel Cells
    Nominal Vdc (ip)244872
    Actual (Vdc)22-3544-6065-90
    Input Amps (Max)72.636.323
    Input Fuse (ATC)3x 252x 201x 30
    Noise on Input< 50mV
    Output Nominal (op)122448
    Output Volts (DC)13.6 0.0527.2 0.0554.4 0.05
    Output Amps60cont./70peak40cont./45peak20cont./22.5peak
    Output Adjustment 1.0V
    Output Crowbar16.0 0.5V32.0 1.0V63.9 2.0V
    Switching Frequency60 2 KHz
    Idle Power< 10 Watts
    Output Ripple & Noise< 50 mV
    Transient Response< 2V for 50% Surge
    Regulation(Line & Load)< +/- 0.5%
    Duty CyclePeak 20% for 10 min maxContinuous 100% for 24 hours per day
    Efficiency> 85% @ Maximum Output
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft (34.5 dB when fan operating)
    Typical Service Life>10 years (87,600 hours)
    IsolationInput-Case & Input-Output 1500VDC (500V @ 24V I/P) Output-Case 500VDC (1500VDC @ 48V O/P)
    Length14.50in/ 36.8 cm
    Width9.9 in/ 25.1 cm
    Height5.5 in/ 14.0 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight12.0 lb / 5.5 kg
    ConnectionsFour contact output terminals
    Warranty3 years
    SafetyDesigned to meet CSA 22.2.107.1 & UL458
