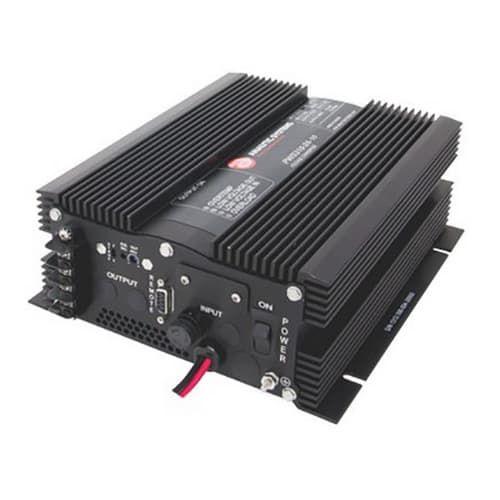

The PWS310 Series of power supplies provides 12, 24, 32 or 48 Volts DC at 300 Watts of continuous power from a 110 or 220 Volt AC source.
Analytic Systems' power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An output over-voltage crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.
The newly updated single-board PWS310 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input is available. The PWS310 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.
Features- Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
- Over-temperature shutdown
- Current limiting
- Short circuit protection
- Output over-voltage crowbar
- Dry contact output fail relay
- Remote control option
- Digital Volt/Ammeter option
- Custom output voltages available
- 3 year parts and labour warranty
- Parallel output diodes available
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other rugged environments
- Mobile Offices (TV and Radio Vans)
- Automotive / RV
- Electric Utilities and Substations
- Base Station Power(Radio & Telecommunications)
- Industrial Controls(OEM Applications)
- Field Work / Construction Sites
- Solar Power Systems
- Emergency Power Backup (UPS)
- Security Systems
- Product Burn-in Facilities
| Nominal Vac (ip) | 110 | 220 |
|---|
| Actual (Vac) | 105-125 | 210-250 |
|---|
| Input Amps (Max) | 4.3 | 2.1 |
|---|
| Input Circuit Breaker | 7A | 4A |
|---|
| Input Frequency | 45-65 Hz |
|---|
| Noise on Input | < 25mV |
|---|
| Output Nominal (op) | 12 | 24 | 48 |
|---|
| Output Volts (DC) | 13.6 0.05 | 27.2 0.05 | 54.4 0.05 |
|---|
| Output Amps | 20cont./25peak | 10cont./13peak | 5.0cont./6.5peak |
|---|
| Absorption to Float(15%) | 3.0Amps | 1.5Amps | 0.75Amps |
|---|
| Output Adjustment(Vdc) | 1.0V |
|---|
| Output Crowbar | 16.0 0.5V | 32.0 1.0V | 64.0 1.0V |
|---|
| Output Ripple & Noise | < 25 mV |
|---|
| Transient Response | < 1V for 50% Surge |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Duty Cycle | Peak 20% for 10min maxContinuous 100% for 24 hours per day |
|---|
| Efficiency | > 80% @ Maximum Output |
|---|
| Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% per C from 40C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE - 0db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Input-Case & input-output 1500VDC Output - Case 500VDC(1500VDC @ 48V O/P) |
|---|
| Length | 9.6 in/ 24.4 cm |
|---|
| Width | 8.2 in/ 20.8 cm |
|---|
| Height | 3.5 in/ 6.4 cm |
|---|
| Clearance | 1 inch (2.5 cm) all around |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 7.5 lb / 3.4 kg |
|---|
| Connections | Four contact output terminals |
|---|
| Warranty | 3 years |
|---|
| Safety | Designed to meet CSA 22.2.107.1 & UL458 |
|---|
