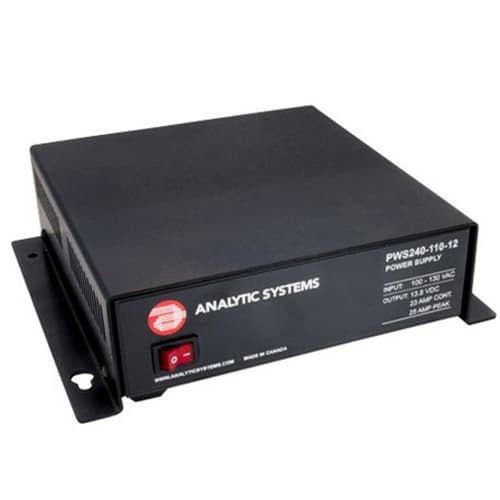

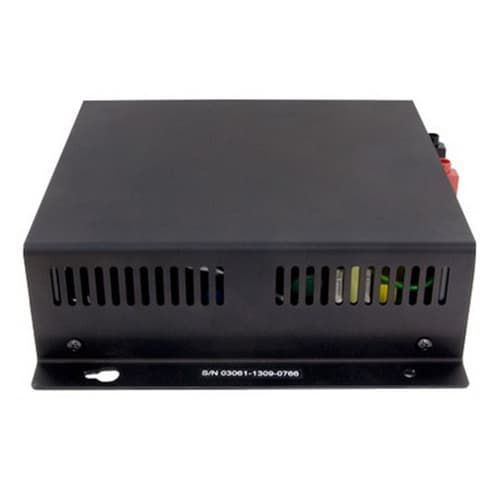

The PWS120 and PWS240 Series of power supplies provide 12Volts DC at more than 120 Watts or 240 Watts of continuous power from a 110 or 220 Volt AC source.
Their new design uses MosFet based Switchmode technology for high reliability, high efficiency and minimum size. Current limiting and safe operating area circuitry protect the transistors.
A crowbar circuit protects any devices powered by the unit from excessive voltage in the unlikely event of a failure.
Features- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Complies with FCC Part 15, Class B standards
- UL listed to both USA & Canadian safety standards
- Input voltage can be set at 120VAC or 240VAC
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other rugged environments
- Automotive / RV
- Electric Utilities and Substations
- Base Station Power(Radio & Telecommunications)
- OEM Applications
- Field Work / Construction Sites
- Solar Power Systems
- Emergency Power Backup (UPS)
- Security Systems
- Charge any 12, 24, 32, or 48 Volt Battery System
| Nominal Vac (ip) | 110 | 220 |
|---|
| Actual (Vac) | 100-130 | 200-260 |
|---|
| Input Amps (Max) | 2.5A |
|---|
| Input Fuse (AGC) | 3A(PWS120)/ 6.3A(PWS240) | 2A(PWS120)/ 4A(PWS240) |
|---|
| Current Limit | 16A (PWS120)/ 27A(PWS240) |
|---|
| Input Frequency | 45-65 Hz |
|---|
| Noise on Input | < 50 mV |
|---|
| Output Nominal (op) | 12 |
|---|
| Output Volts (DC) | 13.8 0.1 |
|---|
| Output Amps | 10cont./14 peak (PWS120)23cont./25 peak (PWAS240) |
|---|
| Output Ripple & Noise | < 10 mV @ 10A out (PWS120)< 15 mV @ 23A out (PWS240) |
|---|
| Transient Response | < 2V for 5A Surge |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Duty Cycle | Peak 20% for 5 min maxContinuous 100% for 24 hours per day |
|---|
| EMC | Complies with FCC Part 15, Class B standards |
|---|
| Efficiency | > 80% @ Maximum Output |
|---|
| Temperature Rise | < 40 deg C @ 14 Amps Out |
|---|
| Input Isolation | Input-Case & Input-Output 1500 VDC, Output-Case 500VDC |
|---|
| Length | 7.5 in/ 19.1 cm |
|---|
| Width | 8.7 in/ 21.8 cm |
|---|
| Height | 2.4 in/ 5.6 cm |
|---|
| Clearance | 1 inch (2.5 cm) all around |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 3.0 lb / 1.4 kg (PWS120)3.5 lb / 1.6 kg (PWS240) |
|---|

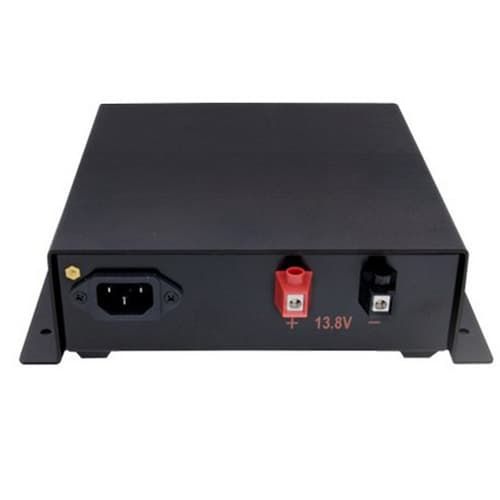

| Connections | Two Contact Output Banana Terminals |
|---|
| Warranty | 3 years |
|---|
| Safety | UL listed to both USA & Canadian safety standards |
|---|
