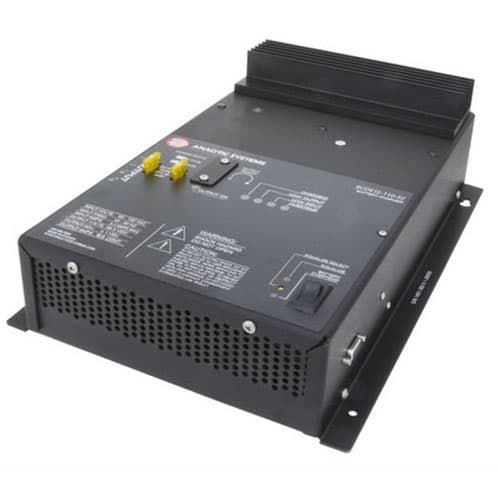

Analytic Systems, BCD615-72-48, 10A, 48V Out, 65-90V In, Iso DC/DC Battery Charger, 2 Bank
Manufacturer Info
Features
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated battery equalization for optimum charging and maximum battery life. Full isolation allows different ground levels to be accommodated (i.e. Charging a positive ground battery from a negative ground source or vice-versa)."
- Power from 300 to 1500 watts
- Isolated DC DC Charger
- Output from 12 to 72 VDC
- Input volts from 12 to 400 VDC
- Three year warranty (parts & labor)
- Product Datasheet | Download
- Product Manual | Download
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated battery equalization for optimum charging and maximum battery life. Full isolation allows different ground levels to be accommodated (i.e. Charging a positive ground battery from a negative ground source or vice-versa)."
Function | Battery Charger |
---|---|
Conversion | DC to DC |
Power Level | 600 |
Input Volts | 65 - 90 VDC |
Output Volts | 48 VDC |
Output Amps Continuous | 11 |
Input/Output Isolation | Yes |
Technology | Analog |
Charging Stages | 3 |
Temperature Compensation | Yes |
Equalize | Yes |
Battery Banks | 2 |
Product Series on website | BCD615 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested |
