Features - 600 watts of charging power
- Isolated DC DC Charger
- One, two or three bank charging
- Manual equalization mode
- Two or three stage charging profiles
- Low EMI
- Adjustable float voltage
- Temperature compensation
- Three year warranty (parts & labor)
- Product Datasheet | Download
- Product Manual | Download

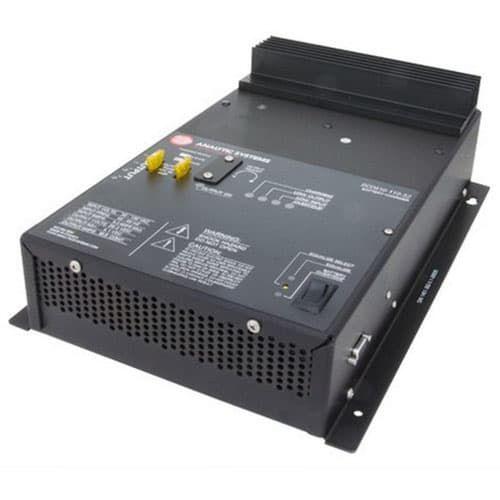

The traditional BCD610 series chargers feature 600 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC.
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
| Function | Battery Charger |
|---|
| Conversion | DC to DC |
|---|
| Power Level | 600 |
|---|
| Input Volts | 230 - 280 VDC |
|---|
| Output Volts | 48 VDC |
|---|
| Output Amps Continuous | 11 |
|---|
| Input/Output Isolation | Yes |
|---|
| Technology | Analog |
|---|
| Charging Stages | 3 |
|---|
| Temperature Compensation | Yes |
|---|
| Equalize | Yes |
|---|
| Battery Banks | 2 |
|---|
| Product Series on website | BCD610 |
|---|
| Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested |
|---|
