Analytic Systems, BCD610-250-24, DC/DC Charger

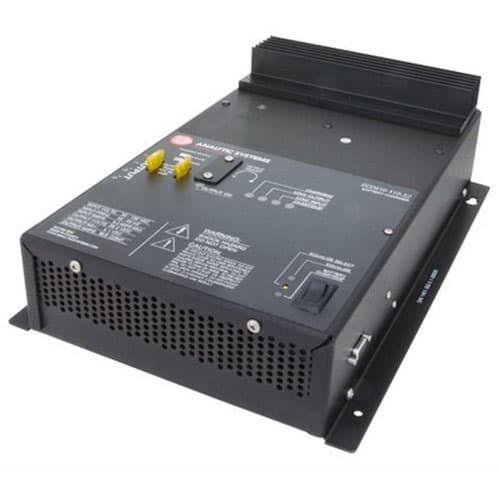

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCD610-250-24, DC/DC Charger

  • Model: BCD610-250-24
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $1,970.87  $1,516.05
    The model BCD610 DC Battery Charger charges either 12V, 24V or 48V batteries from a 110, 220 or 300VDC power source. Other battery voltages up to 360 volts are also available by special order.

    The all-new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection, output short circuit shutdown with automatic recovery, and equalize charging cycle. The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special charging requirements.

    Optional features include a Digital Volt/Ammeter, 3-Bank Charging, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this DC Battery Charger.

    Features
    • Fully Isolated Design
    • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
    • Transient Voltage Suppressor
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Can be left permanently connected
    • Spark free connection
    • User selectable 2 or 3 stage charging profile
    • Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
    • Over-temperature shutdown
    • Short circuit protection
    • Output over-voltage crowbar
    • Inrush Current Limiting with solid state bypass
    • Dry contact output fail relay
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other Rugged Environments
    • Electric Utilities and Substations
    • Manufacturing Plants
    • Steel Mills
    • Military Applications (COTS)
    • Industrial Controls
    • OEM Applications
    • Solar / Alternative Power Systems
    • Fuel Cells
    • Charge any DC/DC System
    Nominal Vac (ip)110250300
    Actual (Vac)100-140230-280280-360
    Input Amps (Max)8.23.62.9
    Input Fuse (ATC)1043
    Noise on Input< 50mV
    Output Nominal (op)122448
    Output Volts (DC)13.6 0.0527.2 0.0554.4 0.05
    Absorption Voltage (Vdc)14.428.857.6
    Charging Amps402211
    Absorption to Float6.0Amps3.3Amps1.65Amps
    Output Adjustment(Vdc) 1.0V
    Output Fuses(ATC)40Amp x230Amp x215Amp x2
    Battery Banks1 or 2 (3 Bank Option Available)
    Battery Size(Amp Hrs.)160-24088-13244-66
    Output Crowbar16.0 0.5V32.0 1.0V63.9 2.0V
    Output Ripple & Noise< 50 mV
    Regulation(Line & Load)< +/- 0.5%
    Temperature Comp.-30 mV/C-60 mV/C-120 mV/C
    Duty CycleContinuous 100% for 24 hours per day
    Efficiency> 75% @ Maximum Output
    Stages2 or 3 (user selectable)
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE - db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationInput-Case & input-output 1500VDC Output - Case 500VDC(1500VDC @ 48V Output)
    Length14.5 in / 36.8 cm
    Width9.9 in / 25.1 cm
    Height3.0 in / 7.6 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight7.6 lb / 3.3 kg
    ConnectionsFour contact output terminals
    Warranty3 years
    SafetyDesigned to meet CSA 22.2.107.1 & UL458
