Home Renewable Energy Analytic Systems Analytic DC Battery Chargers Analytic Systems BCD605-12-24 Step-up DC Charger
Analytic Systems BCD605-12-24 Step-up DC Charger Analytic Systems BCD605-12-24 Step-up DC Charger Analytic Systems BCD605-12-24 Step-up DC Charger

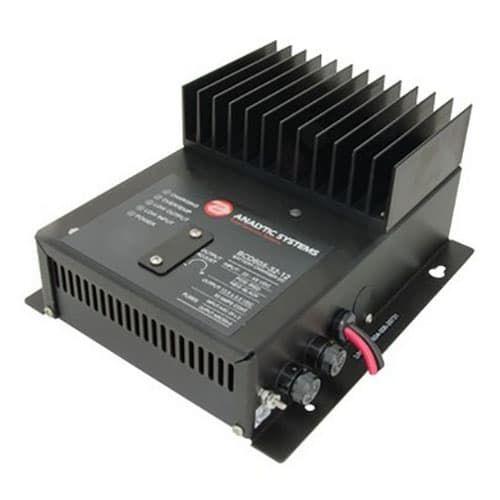

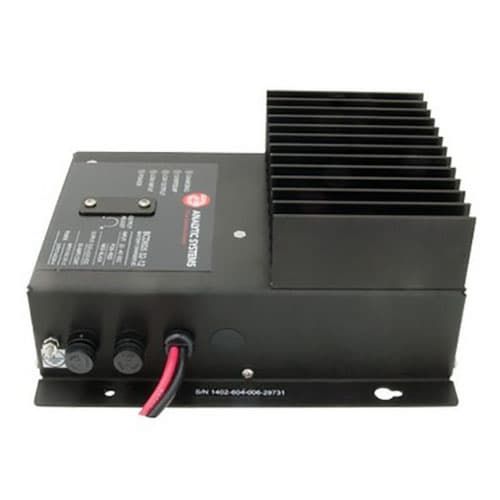

Analytic Systems BCD605-12-24 Step-up DC Charger

Analytic Systems BCD605-12-24 Step-up DC Charger

  • Model: BCD605-12-24
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Estimated Delivery: Jan 16th - Jan 22nd
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $895.70  $689.00
    The BCD605 battery charger provides up to 600 watts to charge a 12V or 24V battery system (1 bank) from a 12V source. Both the 12V source and the batteries under charge must share a common ground.

    This all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage and over temperature.

    Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input undervoltage shutdown, reverse battery protection and output overvoltage crowbar.

    An optional remote control is also available. We are confident that you will get many years of reliable service from this Battery charger.

    Features
    • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
    • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Current limiting protection
    • Short circuit protection
    • Reverse input protection
    • Output over-voltage crowbar
    • Dry contact output fail relay
    • Over-temperature shutdown
    • Spark-free connection
    • Wide-Temperature operation Available
    • Conformal coating and/or harsh environment ruggedization available
    • Optional portable features for automotive use
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other Rugged Environments
    • Mobile Offices (TV and Radio Vans)
    • Automotive / RV / Military
    • Electric Utilities and Substations
    • Base Station Power(Radio & Telecommunications)
    • Industrial Controls
    • Field Work / Construction Sites
    • Solar / Alternative Power Systems
    • Emergency Backup Power (UPS)
    • Charge any 24V Battery System
    Model NumberBCD605-12-12BCD605-12-24
    Input Volts (DC)10.5-1410.5-28
    Input Amps (Max)50
    Input Fuse (AGC)30A x 2
    Noise on Input< 50 mV
    Low Input Voltage Alarm10.5V
    Output Nominal (op)1224
    Output Volts (DC)13.6 0.0527.2 0.05
    Charging Current (Amps)* 40* 20
    Output Adjustment 0.5
    Absorption to Float6.0Amps3.3Amps
    Output Adjustment(Vdc) 1.0V
    Output Crowbar16.0 0.5V32.0 1.0V
    Output Ripple & Noise< 50 mV
    Battery Banks1
    Stage2
    Battery Size (Amp Hours)160-24080-120
    Regulation(Line & Load)< +/- 0.5%
    Duty CycleContinuous 100% for 24 hours per day
    Efficiency> 90% @ Maximum Output
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE - db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationAny Input or Output to Case 500 VDCInput to Output – Common Negative)
    Length9.1 in / 23.1 cm
    Width7.8 in / 19.8 cm
    Height4.3 in / 10.8 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight6.0 lb / 2.7 kg

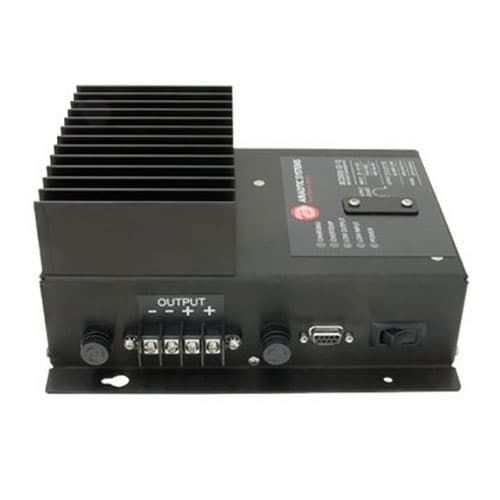

    ConnectionsFour contact output terminals
    Warranty3 years
    SafetyDesigned to meet CSA 22.2.107.1 & UL458
