Analytic Systems, BCD600-32-24, DC/DC Charger Analytic Systems, BCD600-32-24, DC/DC Charger Analytic Systems, BCD600-32-24, DC/DC Charger
Analytic Systems, BCD600-32-24, DC/DC Charger

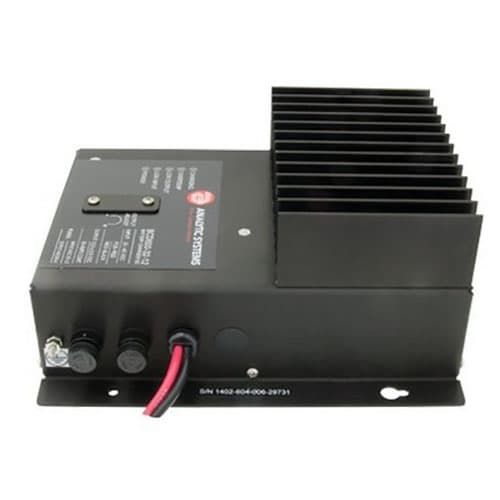

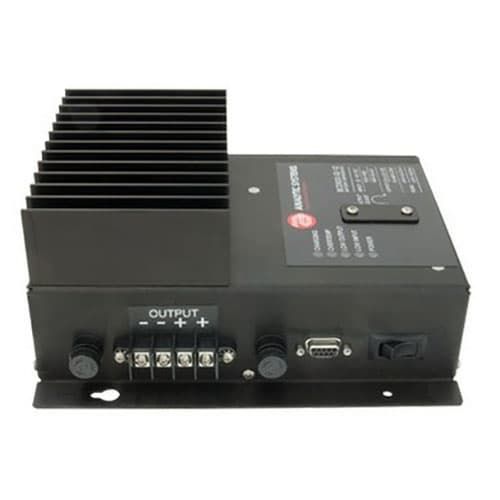

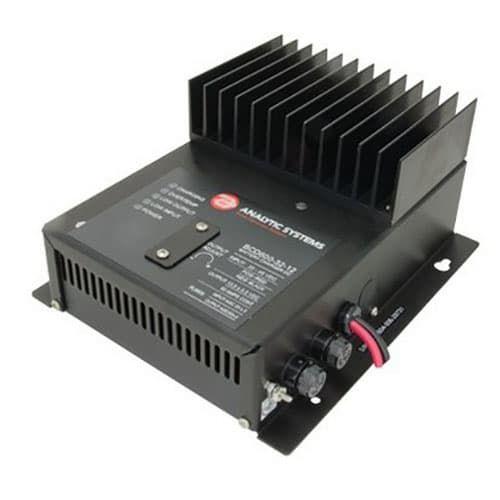

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCD600-32-24, DC/DC Charger

  • Model: BCD600-32-24
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $1,296.95  $997.65
    The BCD600 battery charger provides up to 600 watts to charge a 12V or 24V battery system (1 bank) from a 32V or 36V source. The source and the batteries under charge must share a common ground.

    The all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. The BCD600 Series is capable of charging up to two independent banks of batteries. The two stage charging profile charges the batteries at a constant current equal to the maximum continuous output of the unit. When the battery voltages come up to the float voltage that the unit is set to, the current into the batteries will taper off as necessary to maintain the batteries at the float voltage.

    The unit can be left permanently connected without fear of overcharge or damage to the batteries. The adjustable float voltage feature allows the unit to be used for any type of lead-acid battery including lead acid and gel cell. Available options include a remote control. We are confident that you will get many years of reliable service from this Battery charger.

    • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
    • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Current limiting protection
    • Short circuit protection
    • Reverse input protection
    • Output over-voltage crowbar
    • Dry contact output fail relay
    • Over-temperature shutdown
    • Spark-free connection
    • Wide-Temperature operation Available
    • Conformal coating and/or harsh environment ruggedization available
    • Optional portable features for automotive use
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    • Marine & other Rugged Environments
    • Mobile Offices (TV and Radio Vans)
    • Automotive / RV / Military
    • Electric Utilities and Substations
    • Communications Systems
    • Industrial Controls
    • Field Work / Construction Sites
    • Solar / Alternative Power Systems
    • Emergency Backup Power (UPS)
    • Charge any 12 or 24V Battery System
    Model NumberBCD600-32-12BCD600-32-24
    Input Volts (DC)20-4530-45
    Input Amps (Max)4040
    Input Fuse (AGC)25A x 225A x 2
    Noise on Input< 25 mV
    Low Input Voltage Alarm10.5V
    Output Nominal (op)1224
    Output Volts (DC)13.6 0.0527.2 0.05
    Charging Amps50 cont.38 cont.
    Output Adjustment (Vdc) 0.5
    Output Crowbar16.0 0.5V32.0 1.0V
    Input Fuse (AGC)30A x 225A x 2
    Output Ripple & Noise< 25 mV
    Battery Banks1
    Battery Size (Amp Hours)200-300152-228
    Regulation(Line & Load)< +/- 0.5%
    Duty CycleContinuous 100% for 24 hours per day
    Efficiency> 90% @ Maximum Output
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE - db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationAny Input or Output to Case 500 VDCInput to Output – Common Negative)
    Length9.1 in / 23.1 cm
    Width7.8 in / 19.8 cm
    Height4.3 in / 10.8 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight6.0 lb / 2.7 kg
    Connections#10 AWG Input Wires (Positive & Negative)Four contact output terminals
    Warranty3 years
    SafetyDesigned to meet CSA & UL458
