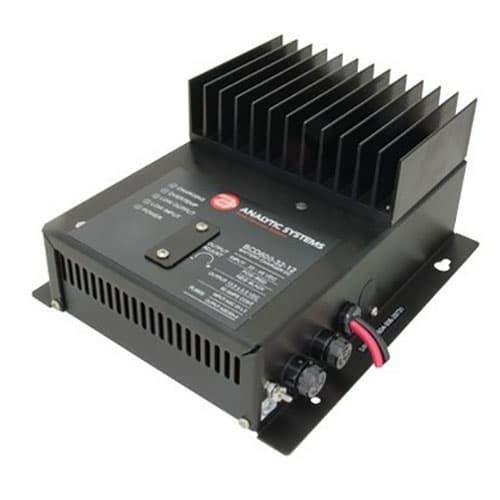

Analytic Systems, BCD600-32-12, 50A, 12V Out, 20-45V In, Non-Iso DC/DC Battery Charger, 1 Bank
Manufacturer Info
Features
The two stage charging profile charges the batteries at a constant current until the battery voltage reaches the float voltage that the unit is set to and then the current into the batteries will taper off as necessary to maintain the batteries at the float voltage.
The unit can be left permanently connected without fear of overcharge or damage to the batteries. The adjustable float voltage feature allows the unit to be used for any type of lead-acid battery including lead acid and gel cell."
- 600 watts of charging power
- Adjustable float voltage
- Buck topology
- Two stage Charging
- Common negative design
- Three year warranty (parts & labor)
- Product Datasheet | Download
- Product Manual | Download
The two stage charging profile charges the batteries at a constant current until the battery voltage reaches the float voltage that the unit is set to and then the current into the batteries will taper off as necessary to maintain the batteries at the float voltage.
The unit can be left permanently connected without fear of overcharge or damage to the batteries. The adjustable float voltage feature allows the unit to be used for any type of lead-acid battery including lead acid and gel cell."
Function | Battery Charger |
---|---|
Conversion | DC to DC |
Power Level | 600 |
Input Volts | 20 - 45 VDC |
Output Volts | 12 VDC |
Output Amps Continuous | 50 |
Input/Output Isolation | No |
Technology | Analog |
Charging Stages | 2 |
Temperature Compensation | No |
Equalize | No |
Battery Banks | 1 |
Product Series on website | BCD600 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'U' Safety Special Inspection (CSA/UL), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested |
