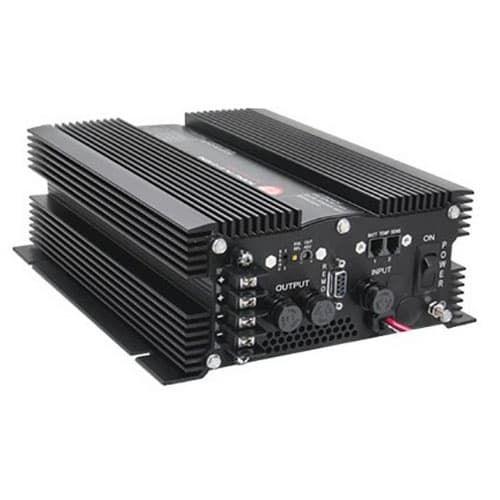

  • Model: BCD315-48-48
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $1,256.58  $966.60
    The BCD315 battery charger provides up to 300 watts to charge a 12 or 24 or 48 Volt battery system (1, 2 or 3 Banks) from a 24V, 48V or 72VDC source. The batteries must share a common ground but the source can be on a different positive or negative ground.

    The all-new Current Mode switching design offers increased power and reliability in a compact package. The low ripple charging profile and standard equalize cycle greatly increases the lifetime of expensive battery systems. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.

    Optional features include a Digital Volt/Ammeter, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this DC Battery Charger.

    Features
    • Fully Isolated Design
    • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
    • Transient Voltage Suppressor
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Can be left permanently connected
    • Spark free connection
    • User selectable 2 or 3 stage charging profile
    • Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
    • Over-temperature shutdown
    • Short circuit protection
    • Output over-voltage crowbar
    • Inrush Current Limiting with solid state bypass
    • Dry contact output fail relay
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other Rugged Environments
    • Telecommunications Equipment
    • Electric Utilities and Substations
    • Manufacturing Plants
    • Steel Mills
    • Military Applications (COTS)
    • Industrial Controls
    • OEM Applications
    • Solar / Alternative Power Systems
    • Fuel Cells
    • Charge any DC/DC System
    Nominal (ip)244872
    Actual (Vdc)20-3540-6065-90
    Input Amps (Max)18.79.45.7
    Input FuseMDA25MDA15MDA10
    Noise on Input< 25 mV
    Output Nominal (op)122448
    Output Volts (DC)13.6 0.0527.2 0.0554.4 0.05
    Absorption Voltage (Vdc)14.428.857.6
    Charging Amps20105
    Absorption to Float3.0 Amps1.5 Amps0.75 Amps
    Output Adjustment (Vdc) 1.0 V
    Output Fuses (AGC)25A15A10A
    Battery Banks1, 2 or 3
    Battery Size (Amp Hours)80-12040-6020-30
    Output Crowbar16.0 0.5V32.0 1.0V63.9 2.0V
    Output Ripple & Noise< 25 mV
    Regulation(Line & Load)< +/- 0.5%
    Temperature Comp.-30 mV/C-60 mV/C-120 mV/C
    Duty CycleContinuous 100% for 24 hours per day
    Efficiency> 75% @ Maximum Output
    Stages2 or 3 (user selectable)
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE - db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationInput-Case & Input-Output 1500VDC (500VDC@24V I/P)Output-Case 500VDC
    Length9.6 in / 24.4 cm
    Width8.2 in / 20.8 cm
    Height3.5 in / 6.4 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight7.5 lb / 3.4 kg
    ConnectionsInput connectorOutput connector
    MS3476W14-4PMS3470W14-4S
    A,C-Positive InputA,C-Positive Input
    B,D-Negative InputB,D-Negative Output
    Warranty3 years
    SafetyUL458 & CSA 22.2.107.1 Pending
