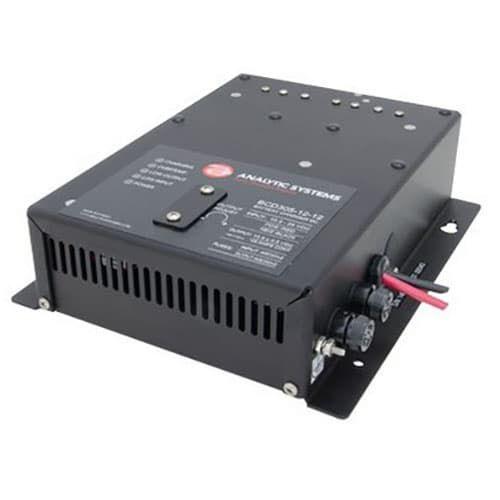

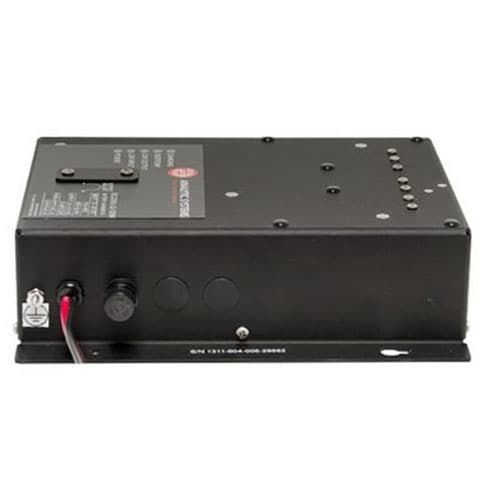

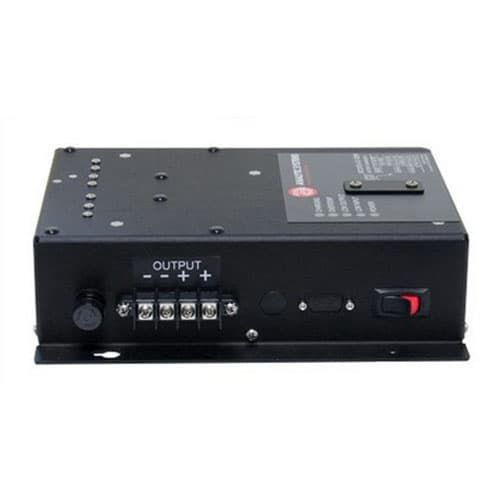

The BCD305 battery charger provides up to 300 watts to charge a 12V or 24V battery system (1 or 2 banks) from a 12V source. Both the 12V source and the batteries under charge must share a common ground.
This all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage and over temperature.
Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input undervoltage shutdown, reverse battery protection and output overvoltage crowbar.
Available options include a remote control and/or extra-wide temperature. We are confident that you will get many years of reliable service from this Battery charger.
Features- Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
- Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Current limiting protection
- Short circuit protection
- Reverse input protection
- Output over-voltage crowbar
- Dry contact output fail relay
- Over-temperature shutdown
- Spark-free connection
- Wide-Temperature operation Available
- Conformal coating and/or harsh environment ruggedization available
- Optional portable features for automotive use
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other Rugged Environments
- Mobile Offices (TV and Radio Vans)
- Automotive / RV / Military
- Electric Utilities and Substations
- Base Station Power(Radio & Telecommunications)
- Industrial Controls
- Field Work / Construction Sites
- Solar / Alternative Power Systems
- Emergency Backup Power (UPS)
- Charge any 24V Battery System
| Model Number | BCD305-12-12 | BCD305-12-24 |
|---|
| Input Volts (DC) | 10.5-14 | 10.5-28 |
|---|
| Input Amps (Max) | 30 |
|---|
| Input Fuse (AGC) | 20A x 2 |
|---|
| Noise on Input | < 10 mV |
|---|
| Low Input Voltage Alarm | 10.5V |
|---|
| Output Nominal (op) | 12 | 24 |
|---|
| Output Volts (DC) | 13.6 0.05 | 27.2 0.05 |
|---|
| Charging Current (Amps) | * 26 | * 13 |
|---|
| Output Adjustment | 0.5 |
|---|
| Output Crowbar | Programmed O/P Volts x (1.3 1%) |
|---|
| Output Fuse (AGC) | 30A x 2 |
|---|
| Output Ripple & Noise | < 10 mV |
|---|
| Battery Banks | 1 or 2 |
|---|
| Stage | 2 |
|---|
| Battery Size (Amp Hours) | 104-156 | 52-78 |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Duty Cycle | Continuous 100% for 24 hours per day |
|---|
| Efficiency | > 85% @ Maximum Output |
|---|
| Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE - db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Any Input or Output to Case 500 VDCInput to Output – Common Negative) |
|---|
| Length | 9.1 in / 23.1 cm |
|---|
| Width | 7.8 in / 19.8 cm |
|---|
| Height | 2.5 in / 6.4 cm |
|---|
| Clearance | 1 inch (2.5 cm) all around |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 4.0 lb / 1.8 kg |
|---|
| Connections | Four contact output terminals |
|---|
| Warranty | 3 years |
|---|
| Safety | Designed to meet CSA 22.2.107.1 & UL458 |
|---|
