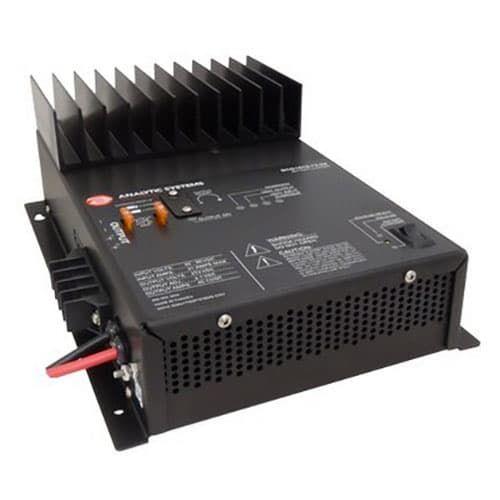

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCD1015-72-48, 20A, 48V Out, 65-90V In, Iso DC/DC Battery Charger, 2 Bank

  • Model: BCD1015-72-48
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$2,297.30 $1,767.15

Manufacturer Info

Features
  • Compatible with a wide range of battery types
  • Won"t interfere with sensitive radio communication systems
  • Rugged and reliable to ensure years of safe and trouble free operation
  • Fast and accurate charging
  • Three year warranty (parts & labor)
  • Product Datasheet | Download
  • Product Manual | Download
The model BCD1015 DC Battery Charger charges 12V, 24V, or 48V battery banks (1 or 2 banks) from a 24, 36, 48 or 72 volt DC power source. The reliable Current Mode switching design offers power and reliability in a compact package. The low ripple charging current and standard equalize cycle greatly increases the lifetime of expensive battery systems. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit protection with automatic recovery. The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special charging requirements. Optional features include a Digital Volt/Ammeter, Remote Control Panel, and 19" or 23? Rack Mount configurations. We are confident that you will get many years of reliable service from this DC Battery Charger.
FunctionBattery Charger
ConversionDC to DC
Power Level1000
Input Volts65 - 90 VDC
Output Volts48 VDC
Output Amps Continuous20
Input/Output IsolationYes
TechnologyAnalog
Charging Stages3
Temperature CompensationYes
EqualizeYes
Battery Banks2
Product Series on websiteBCD1015
Option Codes'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
