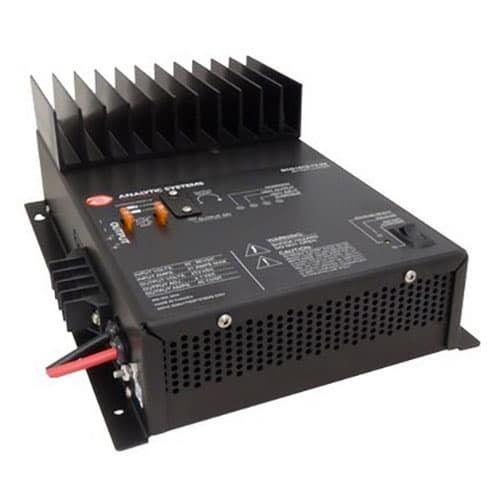

The images shown are for illustration purposes only and may not be an exact representation of the product
The model BCD1015 DC Battery Charger charges either 12V, 24V or 48V batteries from a 24V, 48V or 72VDC power source. Other battery voltages up to 56 volts are also available by special order.
The all-new Current Mode switching design offers increased power and reliability in a compact package. The low ripple charging profile and standard equalize cycle greatly increases the lifetime of expensive battery systems. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery.
The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special charging require-ments. Optional features include a Digital Volt/Ammeter, Remote Control Panel, and/or 19 Rackmounting. We are confident that you will get many years of reliable service from this DC Battery Charger.
Features- Fully Isolated Design
- Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
- Transient Voltage Suppressor
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Can be left permanently connected
- Spark free connection
- User selectable 2 or 3 stage charging profile
- Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
- Over-temperature shutdown
- Short circuit protection
- Output over-voltage crowbar
- Dry contact output fail relay
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other rugged environments
- Electric Utilities and Substations
- Manufacturing Plant
- Steel Mills
- Military Applications (COTS)
- Industrial Controls
- OEM Applications
- Solar / Alternative Power Systems
- Fuel Cells
- Charge any DC/DC System
Nominal Vac (ip) | 24 | 48 | 72 |
---|
Actual (Vdc) | 20-35 | 40-60 | 65-90 |
---|
Input Amps (Max) | 66.7 | 34 | 21 |
---|
Input Fuse (ATC) | 40 x 2 | 20 x 2 | 25 x 1 |
---|
Noise on Input | < 50mV |
---|
Output Nominal (op) | 12 | 24 | 48 |
---|
Output Volts (DC) | 13.6 0.05 | 27.2 0.05 | 54.4 0.05 |
---|
Absorption Voltage (Vdc) | 14.4 | 28.8 | 57.6 |
---|
Charging Amps | 60 | 40 | 20 |
---|
Absorption to Float | 9.0 Amps | 6.0 Amps | 3.0 Amps |
---|
Output Adjustment(Vdc) | 1.0V |
---|
Output Fuses(ATC) | 40Amp x2 | 40Amp x2 | 25Amp x2 |
---|
Battery Banks | 1 or 2 (3 Bank Option Available) |
---|
Battery Size(Amp Hrs.) | 240-360 | 160-240 | 80-120 |
---|
Output Crowbar | 16.0 0.5V | 32.0 1.0V | 63.9 2.0V |
---|
Output Ripple & Noise | < 50 mV |
---|
Regulation(Line & Load) | < +/- 0.5% |
---|
Temperature Comp. | -30 mV/C | -60 mV/C | -120 mV/C |
---|
Duty Cycle | Continuous 100% for 24 hours per day |
---|
Efficiency | > 82.6% @ Maximum Output |
---|
Stages | 2 or 3 (user selectable) |
---|
Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% perC from 40C(Optional -40C extra wide temp. operation avail.) |
---|
Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
---|
Audible Noise | NONE - db @ 3 ft (34.5 dB when fan operating) |
---|
Typical Service Life | >10 years (87,600 hours) |
---|
Isolation | Input-Case & Input-Output 1500VDC (500V @ 24V I/P)Output-Case 500VDC (1500VDC @ 48V O/P) |
---|
Length | 14.5 in / 36.8 cm |
---|
Width | 9.9 in / 25.1 cm |
---|
Height | 5.0 in / 12.7 cm |
---|
Clearance | 1 inch (2.5 cm) all around |
---|
Material | Marine Grade Aluminium |
---|
Finish | Black Anodize / Powder Epoxy Coat |
---|
Fastenings | All 18-8 Stainless Steel |
---|
Weight | 12.0 lb / 5.5 kg |
---|
Connections | Four contact output terminals |
---|
Warranty | 3 years |
---|
Safety | Designed to meet CSA 22.2.107.1 & UL458 |
---|
