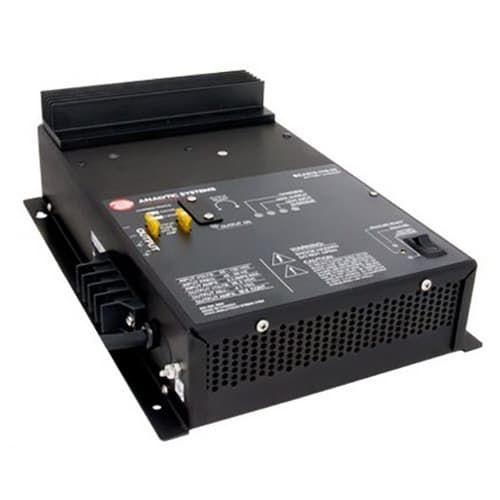

Analytic Systems, BCA610-110-72, 7A, 72V Out, 110VAC In, AC/DC Battery Charger, 2 Bank, CSA/UL
Manufacturer Info
Features
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
- Two or three stage charging profiles
- Adjustable float voltage
- One or two bank charging (three bank optional)
- Temperature compensation
- Low EMI
- Manual equalization mode
- Three year warranty (parts & labor)
- Product Datasheet | Download
- Product Manual | Download
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
Function | Battery Charger |
---|---|
Conversion | AC to DC |
Power Level | 600 |
Input Volts | 110 VAC |
Power Factor Corrected (PFC) | No |
Output Volts | 72 VDC |
Output Amps Continuous | 7 |
Input/Output Isolation | Yes |
Technology | Analog |
Charging Stages | 3 |
Temperature Compensation | Yes |
Equalize | Yes |
Battery Banks | 2 |
Product Series on website | BCA610 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'R' 19 Inch Rackmount, 'Q' 23 Inch Rackmount, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested |
