Analytic Systems, BCA310-110-72, AC Battery Charger

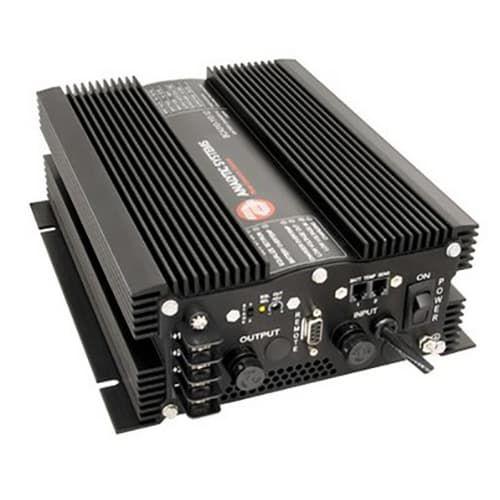

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCA310-110-72, AC Battery Charger

  • Model: BCA310-110-72
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $1,270.62  $977.40
    The BCA310-MS Battery Charger provides up to 300 watts to charge a 12, 24, 28, 32 or 48-volt battery system (1 or 2 banks) from a 110 or 220VAC source. The batteries must share a common ground.

    w single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and an equalize charging cycle. Safety features include both charger and battery over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input undervoltage shutdown, reverse battery hook-up protection, a dry contact alarm relay output and output overvoltage crowbar.

    Optional features include a Digital Volt/Ammeter, 3-Bank Charging, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this AC Battery Charger.

    Features
    • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Can be left permanently connected
    • Can function as a power supply
    • User selectable 2 or 3 stage charging profile
    • Field switchable between 110VAC and 220VAC
    • Audible and visual indicators for low output voltage and over-temperature
    • Over-temperature shutdown
    • Temperature compensated charging
    • Short circuit protection
    • Output over-voltage crowbar
    • Inrush current limiting with solid state bypass
    • Dry contact output fail relay
    • 2 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Military Option

    Most of the products manufactured by Analytic Systems can be adapted for military use (Commercial Off The Shelf).

    We provide four different levels of ruggedization; most often, aproduct in military use will use the extra-wide temperature rangecomponents to allow operation to +55 degrees Celsius.

    The printed circuit boards are also protected against condensationand are enhanced with vibration protection that meets or exceedsMIL-STD810F, Method 514-3 and Cat-1 Proc 1.

    C.O.T.S. products are designed to meet EMC radiated and conducted emissions MIL-STD 461E.

    All C.O.T.S. products are manufactured in accordance with IPC-A-610.
    Nominal Vac (ip)110220
    Actual (Vac)105-125210-250
    Input Amps (Max)3.71.8
    Input Circuit Breaker5A3A
    Input Frequency45-65 Hz
    Noise on Input< 50 mV
    Output Nominal (op)12242848
    Output Volts (DC)13.627.2 (24.0 Avail)2854.4
    Absorption Voltage (VDC)14.428.829.657.6
    Charging Amps2010105
    Absorption to Float (15%)3 Amps1.5 Amps1.5 Amps0.75 Amps
    Output Adjustment (VDC)1.0V
    Output Fuses25 x 115 x 110 x 110 x 1
    Battery Banks1 or 2 (3 bank option available)
    Output Crowbar16.0 0.5V32.0 1.0V42.7 1.3V63.9 2.0V
    Battery Size (Amp Hrs.)80-12040-6030-4520-30
    Output Ripple & Noise<25 mV
    Regulation(Line & Load)< 0.5%
    Duty CycleContinuous 100% for 24 hours per day
    EMCDesigned to meet MIL461E
    Efficiency> 75% @ Maximum Output
    Stages2 or 3 (user selectable)
    Operating Temp. Range-40 to +55C @ maximum output Derate Linearly 2.5% per C from 55C
    Humidity95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationCase & Input-Output 1500VDC / Output-Case 500VDC
    Length14.5 in / 36.8 cm
    Width9.9 in / 25.1 cm
    Height3.0 in / 7.6 cm
    Clearance1 inch (2.5 cm) all around
    MaterialMarine Grade Aluminium
    FinishBlack Anodize/Power Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight7.2 lb / 3.3 kg
    ConnectionsFour contact output terminals
    VibrationDesigned to meet CSA 22.2.107.1 & UL458
    InterconnectIPC-A-610
    Warranty2 years
