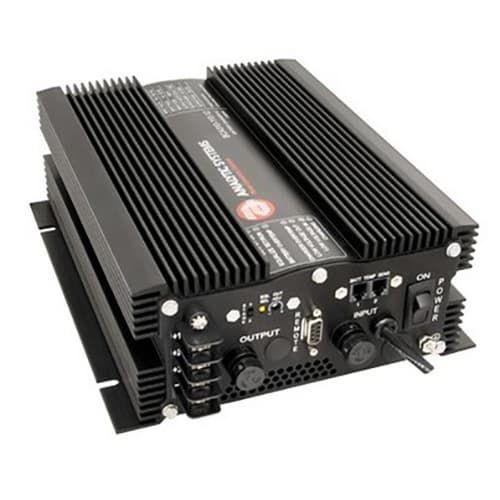

Analytic Systems, BCA310-110-24, 10A, 24V Out, 110VAC In, AC/DC Battery Charger, 3 Bank
Manufacturer Info
Features
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
- 300 watts of charging power
- One, two or three bank charging
- Temperature compensation
- Manual equalization mode
- Two or three stage charging profiles
- Low EMI
- 110 and 220 VAC inputs
- Adjustable float voltage
- Three year parts and labour warranty
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
Function | Battery Charger |
---|---|
Conversion | AC to DC |
Power Level | 300 |
Input Volts | 110 VAC |
Power Factor Corrected (PFC) | No |
Output Volts | 24 VDC |
Output Amps Continuous | 10 |
Input/Output Isolation | Yes |
Technology | Analog |
Charging Stages | 3 |
Temperature Compensation | Yes |
Equalize | Yes |
Battery Banks | 3 |
Product Series on website | BCA310 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested |
