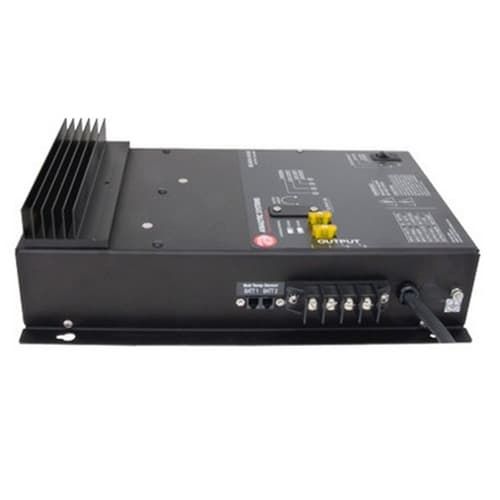

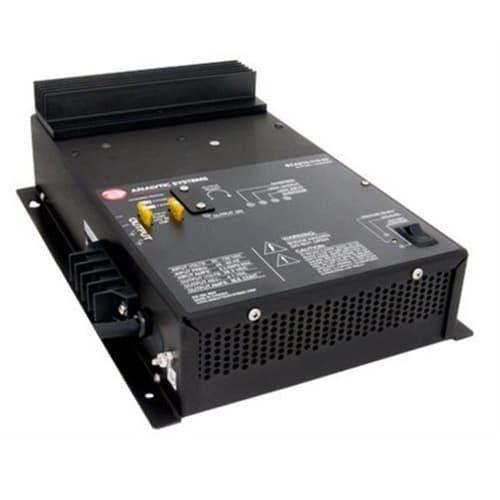

The BCA1000 battery charger provides up to 1000 watts to charge a 12, 24, 32, or 48 Volt battery system (1, 2 or Optional 3 banks) from a 110 or 220VAC source. The batteries must share a common ground.

This all-new single board design incorporates state of the art switch mode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and an equalize charging cycle. Safety features include charger and battery over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input under voltage shutdown, reverse battery hook-up protection, a dry contact alarm relay output and output overvoltage crowbar.

Optional features include a Digital Volt/Ammeter, 3-Bank Charging, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this AC Battery Charger.

Features

• Ideal as Global Marine Distress Safety System (GMDSS) power supply when equipped with optional voltmeter and ammeter.
• Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
• Temperature compensated charging
• High tolerance for shock and vibration
• Ultra-quiet low EMI operation
• Can be left permanently connected
• Can function as a power supply
• Dry contact output fail relay
• User selectable 2 or 3 stage charging profile
• 3 Bank Option Available
• Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
• Over-temperature shutdown
• Short circuit protection
• Output over-voltage crowbar
• Inrush Current Limiting with solid state bypass
• Thermostatically controlled fan
• 3 year parts and labour warranty
• Product Specifications | Download
• Product Manual | Download

Applications

• Marine & other rugged environments
• Automotive / RV
• Electric Utilities and Substations
• Base Station Power(Radio & Telecommunications)
• OEM Applications
• Field Work / Construction Sites
• Solar Power Systems
• Emergency Power Backup (UPS)
• Security Systems
• Charge any 12, 24, 32, or 48 Volt Battery System

Nominal Vac (ip)	110	220
Actual (Vac)	90-130	180-260
Input Amps (Max)	17	8.5
Input Circuit Breaker	20A/ 15A(12V) 25A all others	10A/ 8A(12V) 15A all others
Input Frequency	45-65 Hz
Noise on Input	< 50mV

Output Nominal (op)	12	24	32	48
Output Volts (DC)	13.6 0.05	27.2 0.05	36.3 0.05	54.4 0.05
Absorption Voltage (Vdc)	14.4	28.8	38.4	57.6
Charging Amps	60	40	30	20
Absorption to Float(15%)	9Amps	6Amps	4.5Amps	3.0Amps
Output Adjustment(Vdc)	1.0V
Output Fuses(AGC)	40Amp x2	40Amp x2	40Amp x2	30Amp x2
Battery Banks	1 or 2 (3 Bank Option Available)
Battery Size( Amp Hrs.)	240-360	160-240	120-180	80-120
Output Crowbar	16.0 0.5V	32.0 1.0V	42.7 1.3V	63.9 2.0V
Output Ripple & Noise	< 50 mV
Regulation (Line & Load)	< +/- 0.5%
Temperature Comp.	-30 mV/C	-60 mV/C	-80 mV/C	-120 mV/C
Duty Cycle	Continuous 100% for 24 hours per day
Efficiency	> 75% @ Maximum Output
Stages	2 or 3 (user selectable)

Operating Temp. Range	-25 to +40C @ maximum output Derate Linearly 2.5% per C from 40C(Optional -40C extra wide temp. operation avail.)
Humidity	0 - 95C Relative Humidity(non-condensing) with optional conformal coating
Audible Noise	NONE - 0db @ 3 ft
Typical Service Life	>10 years (87,600 hours)
Isolation	Input-Case & input-output 1500VDC Output - Case 500VDC(1500VDC @ 48V O/P)

Length	14.5 in/ 36.8 cm
Width	9.9 in/ 25.1 cm
Height	5.5 in/ 14.0 cm
Clearance	1 inch (2.5 cm) all around
Material	Marine Grade Aluminium
Finish	Black Anodize / Powder Epoxy Coat
Fastenings	All 18-8 Stainless Steel
Weight	12.0 lb / 5.5 kg
Connections	Four contact output terminals
Warranty	3 years
Safety	Built to meet UL458 & CSA22.2.107.1
