Features- Recreational and semi-professional use.
- Easy to install using included mounting bracket screws and fasteners.
- Smart electronics mean no unnecessary heat generation.
- Continuous output.
- Insulated and non-insulated models available.
- Two minutes of extra power for short power boosts.
- Excellent price/performance ratio.
- Product Specifications | Download
Always on course with MastervoltMastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes with Mastervolt you always have power you can rely on... The power to be independent.

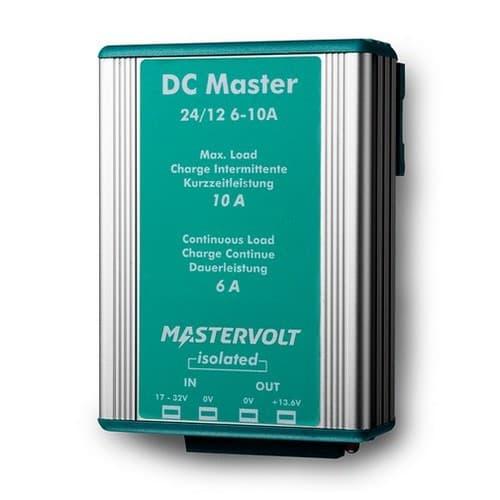

DC Master DC-DC convertersThe required voltage for DC current can vary. Some equipment requires 24 V while onboard equipment usually requires 12 V. For custom DC current Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available including insulated and non-insulated models.
| | |
| General specifications | General specifications |
| Nom. output voltage | 13.6 V |
| Max. output power | 136 W |
| Nom. output power | 82 W |
| Max. output current (for 2 min. intervals) | 10 A |
| Cont. output current | 6 A |
| Nominal input voltage | 24 V |
| Input voltage range | 20-32 V |
| Galvanic isolation | no |
| Stabilised | yes |
| Dimensions hxwxd | 89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch |
| Weight | 0.27 kg 0.6 lb |
| Approvals | CE E-mark |
| Technical specifications | Technical specifications |
| DC consumption | < 10 mA |
| Connections | fast-on |
| Temperature range (ambient temp.) | -25 C to 80 C derating > 30 C -13 to 176 F |
| Cooling | natural cooling |
| Sound level | < 30 dBA at 1 mtr |
| Protection degree | IP53 |
