Features

• Recreational and semi-professional use.
• Easy to install using included mounting bracket screws and fasteners.
• Smart electronics mean no unnecessary heat generation.
• Continuous output.
• Insulated and non-insulated models available.
• Two minutes of extra power for short power boosts.
• Excellent price/performance ratio.
• Product Specifications | Download

Always on course with Mastervolt

Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes with Mastervolt you always have power you can rely on... The power to be independent.

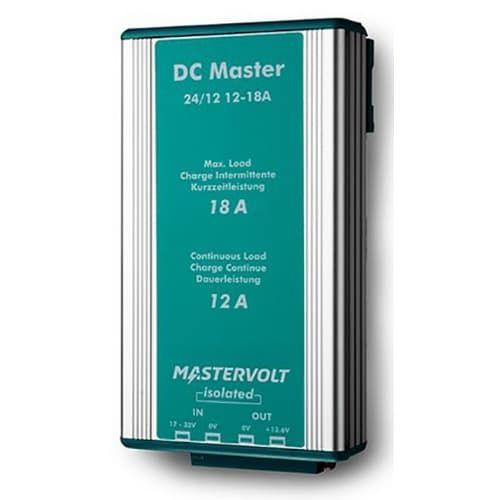

DC Master DC-DC converters

The required voltage for DC current can vary. Some equipment requires 24 V while onboard equipment usually requires 12 V. For custom DC current Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available including insulated and non-insulated models.

General specifications		General specifications
Nom. output voltage	13.6 V
Max. output power	245 W
Nom. output power	164 W
Max. output current (for 2 min. intervals)	18 A
Cont. output current	12 A
Nominal input voltage	24 V
Input voltage range	20-32 V
Galvanic isolation	no
Stabilised	yes
Dimensions hxwxd	127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch
Weight	0.405 kg 0.9 lb
Approvals	CE E-mark
Technical specifications		Technical specifications
DC consumption	< 10 mA
Connections	fast-on
Temperature range (ambient temp.)	-25 C to 80 C derating > 30 C -13 to 176 F
Cooling	natural cooling
Sound level	< 30 dBA at 1 mtr
Protection degree	IP53
