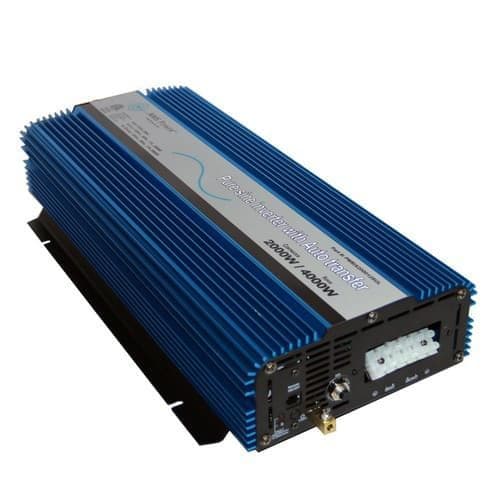

The AIMS Power 2000 watt pure sine inverter with transfer switch - ETL certified to conform to UL 458 standards is ideal for RVs, boats or mobile businesses that need power for medium size devices. Easy to install. The inverter will switch between city power and battery power without any extra wires. Power microwaves, refrigerators, freezers, heaters, computers, tools, compressors and pumps. Includes a 2 year warranty.

Features

• Pure sine
• ETL listed and conforms to UL458 standards
• Hard wire direct connect terminal block for AC
• 2000 watt continuous power
• 4000 watt surge
• Over voltage shutdown
• Under voltage shutdown
• Intelligent cooling fan
• Automatic transfer switch 10 amps
• Conformal coated for marine applications
• AC pass through without being turned on or connected to a battery bank
• 25A resettable AC breaker
• No programming or DIP switch changes needed for operation
• Remote switch available
• Less than 20msec typical transfer time
• 2 year warranty
• Product Manual | Download

Specifications

• 2000 watts continuous
• 4000 watt surge (not recommended for start up applications)
• Built in automatic transfer switch 10 amp transfer <20 msec
• DC input voltage 10-16V
• AC input voltage 120VAC +/-10%
• Output voltage 120VAC, 60HZ
• Efficiency 86-90%
• THD: <3%
• Over voltage shutdown 16VDC +/- .5V
• Under voltage shutdown 10VDC +/- .5V
• Under voltage alarm 10.3VDC +/- .3V
• Over temp protection 150 degrees F +/- 5 degrees F
• Thermal fan
• Pure sine output
• No load current: 1.2A
• Direct connect terminal block
• L x W x H: 21.5? x 9.5? x 3.5?
• Unit - 14.4 lbs
• Boxed - 18 lbs

Optional Remote
Part # REMOTEHF Optional Remote on/off switch (new flush mount design)

Dip switches to black out the lights if preferred.
L x W x H: 3 x 2.06 x 1
