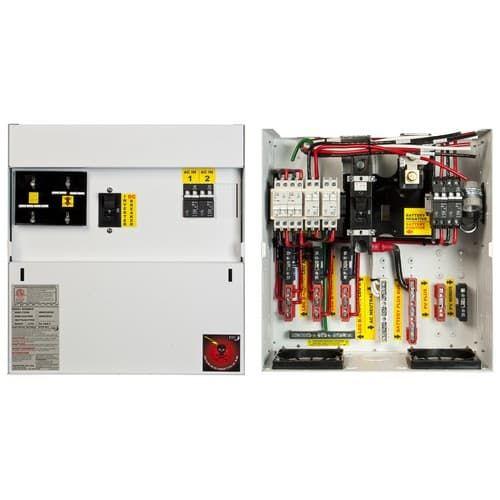

Master E-Panel for a Dual Schneider Electric XW Plus inverter/charger. The XW inverter is mounted directly above the E-Panel for a 16 inch wide assembly.
Requires a Slave Epanel for the second XW inverter.
Color matched to the new XW+ by Schneider Master E-Panel for use in a dual XW Plus system, Requires a Slave E-Panel as well.
Features - Inverter battery breaker
- 2 separate 60 amp AC inputs for generator and utility
- 120 amp AC bypass switch
- Knockouts for up to seven din rail mount breakers, including the DCGFP63 DC or AC Din Rail breakers and 12 panel mount breakers or DC-GFP80 breakers
- Massive tin plated copper bus bars directly connect to the XW's battery terminals
- Bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-
- 500 amp shunt (MNSHUNT)
- Metal dead front behind the reversible door
- Charge controllers mount to either side or both sides at once for dual controllers. (Note: The XW 60 amp controller can mount on the Right side only due to their isolated communications compartment)
- The XW MPPT controller requires no mounting bracket. FM60, FM80 and Classic require Right or Left E-Panel charge control mounting brackets. Right hand bracket furnished standard.
- Main Breaker Current Rating - 240A
- Number of spaces - 19
- Environmental Rating - Type 1 (Indoor)
- Max. Wire Size - 4/0 AWG
- Max. AC Voltage - 240VAC
- Max. DC Voltage - 300VDC
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
