Enclosure only - NOT COMPATIBLE WITH THE BIRDHOUSE.

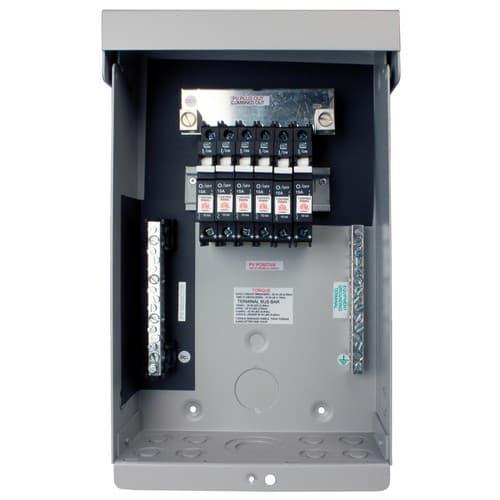

This 3R MNPV6 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model will support several different configurations. You can use 6 of our 150 volt DC breakers and included buss-bar for a 6 string disconnecting combiner. You also will be able to install 1 of our 600 volt DC breakers making a nice grid tie disconnect. The MNPV6-Disco's red handled is LOCKABLE IN THE OFF POSITION!
The MNPV6 Disco is very flexible. It is ETL listed for AC and DC. This allows you to configure it for several different uses. It will work with 1-6 of our 150 volt DC breakers. The combiner also works with 1 of our 600 volt DC breakers for a grid tie disconnect. You can also install a 240 volt AC breaker with the 600 volt DC breaker to make a complete disconnect for a grid tie inverter. Load Break rated. This configuration makes a compact Grid Tie disconnect for those applications where the built in switch won't do the trick. We have 16 and 20 amp 600VDC breakers. We stock 120V and 240VAC breakers.
Depending upon the model number, you can use:
- Type 3R environmental rating
- DC 600V (1 circuit Pos or Pos and Neg switched) OR DC 150v (6 Circuits) OR AC 120v (6 circuits) use the Part no. MNPV6-Disco combiner
- DC 300V (3 circuits) Part #MNPV6-250-Disco combiner
- AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro-Disco combiner
- AC and DC can be installed in the same box!
- Example: 600Vdc 20 amp PV in and 40 amp 240Vac Inverter output
- 3R Combiner Roof Pitch | Download
- MNPV6 Disco Manual | Download
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
