Midnite Solar, MNE250SMA-SLAVE-E, E-Panel - SMA

  • Model: MNE250SMA-SLAVE-E
  • Manufactured by: Midnite Solar
  • Condition: New
  • Estimated Delivery: Oct 12th - Oct 18th
  • In Stock
Price:

$1,389.50 $1,068.84

Manufacturer Info

Companion E-Panel for dual, triple and quad Sunny Island inverter systems. The Slave E-Panel is the same part number for all multiple SMA E-Panel systems regardless of off-grid, AC coupled, battery backup, 3 phase or quad.

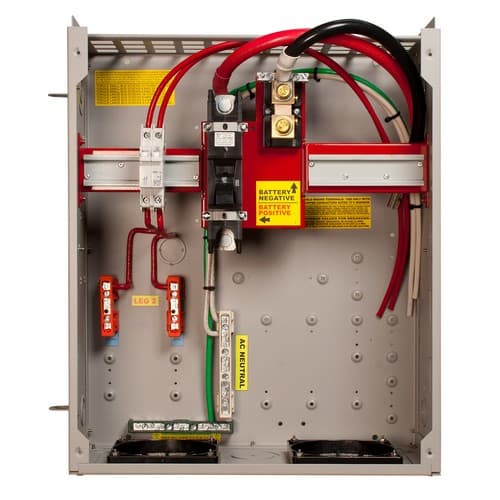

The MNE250SMA-SLAVE includes:
  • Environmental Rating - Type 1 (Indoor)
  • Separate 60amp, 120/240vac AC input and output breakers for the slave inverter

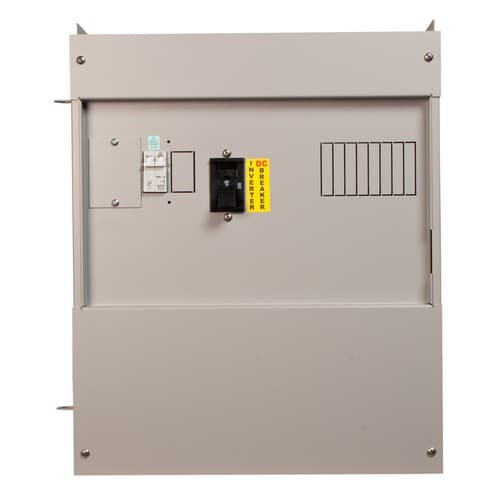

  • 4 Extra spaces on the face to the Left of the main battery breaker for the white bodied (MNEACQZD) CBI Din Rail breakers
  • 8 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
  • 4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
  • 250amp battery breaker with inverter cables
  • 500amp/50mV shunt (MNSHUNT)
  • Battery negative busbar
  • AC input and Output busbars
  • Neutral and ground busbars
  • AC input and output wiring
  • Comes with Red busbars installed
  • Additional black and blue insulators included for tailoring to suit the application
  • Space provided for 6 additional 1/2" wide din rail mount AC or DC breakers and up to 12 3/4" wide panel mount breakers
  • Mounting hole spaces for additional terminal busbars
  • Knockouts located for battery cables
  • AC conduit connections
  • Warranty - 5 yrs.
  • Listed by ETL for US & Canada
  • SMA E-Panel Dim Drawing | Download
  • SMA-E-Panel-Manual | Download
  • Classic Simple Flow Diagram | Download
This E-Panel does not include any AC Output/Bypass system.
All breakers are hydraulic-magnetic and rated for continuous duty.

NOTE: A back plate (MNESMA-Short BP or MNESMA-Tall-BP) is recommended for the proper wiring alignment of the Sunny Island.
