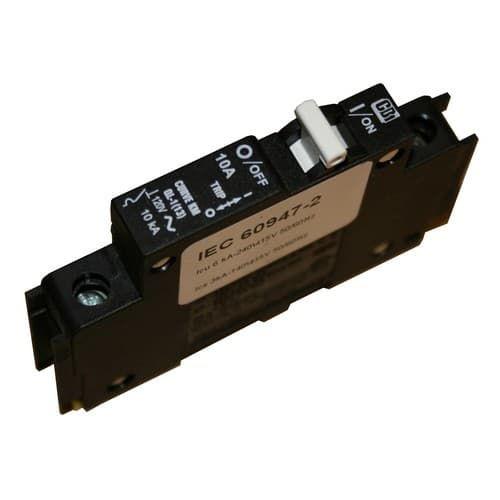

5, 10, 15, 20, & 25 amp 120VAC branch circuit rated 489A din rail mount.
10,000 AIC
Note: Branch circuit rated 489A
All MidNite circuit breakers are rated for 100% continuous duty. MidNits breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
Breaker Torque Value: 20 In-Lbs (2.3NM)
- Environmental Rating - Type 1 (Indoor)
- Listed for US & Canada
- MNEPV1 to MNEPV63 Dim Drawing | Download
- Breaker and Busbar Torque Specs | Download
- Q-Series Breaker Specifications | Download
