Home Mastervolt Mastervolt DC-DC Converters Mastervolt, 81300300, Magic 12/24-10

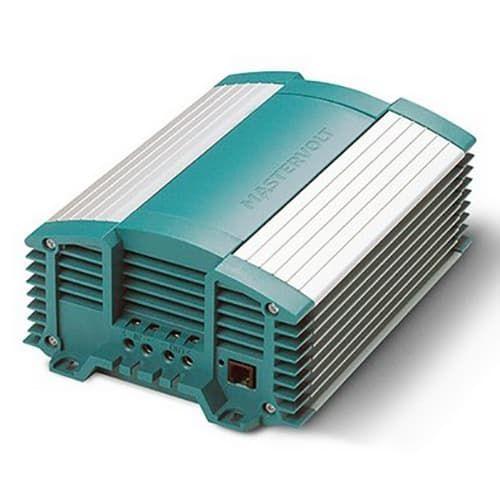

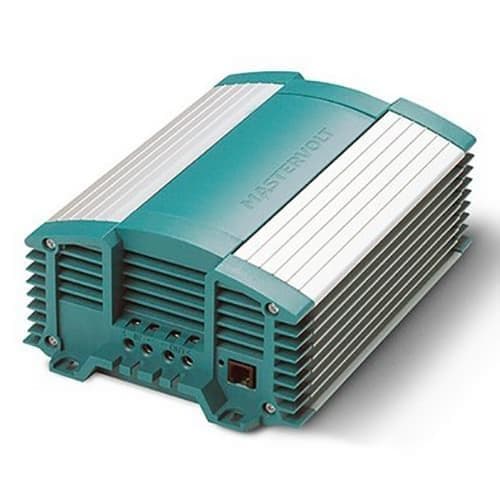

Mastervolt, 81300300, Magic 12/24-10

Mastervolt, 81300300, Magic 12/24-10

  • Model: 81300300
  • GTIN: 00084282720467
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Estimated Delivery: May 20th - May 26th
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $722.61  $555.85
    Mass battery chargers sine wave inverters and DC-DC converters are designed for the toughest conditions for professional semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280000 hours at full capacity and 24/7 use the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply. You can always rely on their proven and technically advanced components.

    Making the best even better

    The reliability and long lifespan of Mastervolt s battery chargers sine wave inverters and DC-DC converters have been established beyond doubt over the past decade. While the Mass products have evolved with the latest technological developments the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

    Mastervolt Green by Heart

    As part of our constant search for eco-friendly and long-lasting solutions Mastervolt has developed the Green by Heart programme. Its impact on the Mass battery chargers Mass Sine inverters and Mac & Magic DC-DC converters include:
    • An exceptionally effective use of the consumed input current (cos phi) > 0.98!
    • Faster charging of batteries even with when the input current is limited.
    • Use of top quality components with a long lifespan.
    • Savings in weight and space.
    • Fewer installation materials.
    • Product Specifications | Download
    MasterBus compatible

    For the DC-DC converters you can use the MasterBus Serial Interface. All you need is a single cable with one connection. Your benefits: Fast and easy installation plus centralised monitoring configuration and operation of your system with a MasterView panel.
    General specificationsGeneral specifications
    Nom. output voltage27.2 V
    Output voltage (adjustable with MasterAdjust)20-28.5 V
    Output voltage dimmer (adjustable with MasterAdjust)8-26 V
    Output voltage stabilisation2% at extremes of temperatures load and input
    Output voltage ripple (peak peak)max. 1%
    Max. output power300 W
    Nom. output power300 W
    Max. output current10 A
    Output charge current (3-step mode)8 A
    Nominal input voltage12 V
    Input voltage range11-16 V
    Input voltage range (3-step charge mode)12-16 V
    Lower input set point (adjustable with MasterAdjust)10 V
    Delay lower input set point (adjustable with MasterAdjust)30 sec.
    Galvanic isolationyes
    Voltage limitedyes
    Efficiency> 90% at nom. input voltage full load; peak 92 %
    Dimmer functionyes by external momentary switch via fast-on connection to be activated by DIP switch setting
    Alarm contactyes (fast-on connector)
    Dimensions hxwxd227 x 154 x 81 mm 8.9 x 6.1 x 3.2 inch
    Weight1.8 kg 4.0 lb
    ApprovalsCE
    Technical specificationsTechnical specifications
    3-Step charge optionyes (DIP switch settings)
    DC consumption< 115 mA
    Connectionsscrew terminals (max. wire size 16 mm / AWG5)
    Temperature range (ambient temp.)-25 C to 80 C derating > 40 C -13 to 176 F
    Coolingmaintenance free vario fans
    Sound level< 48 dBA at 1 mtr
    Protection degreeIP21
    Protectionsagainst over load & over temperature
    MasterBus compatibleyes in combination with a MasterBus Serial Interface
