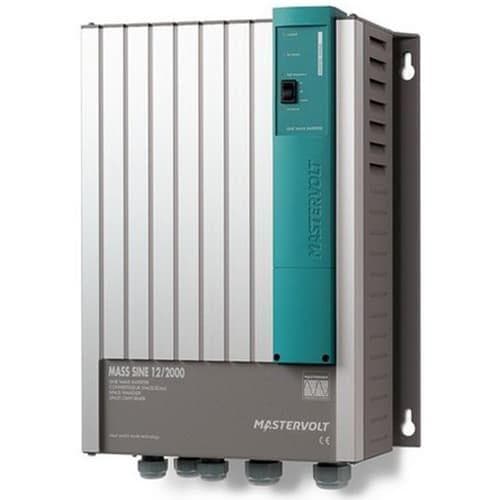

The images shown are for illustration purposes only and may not be an exact representation of the product
Mass battery chargers sine wave inverters and DC-DC converters are designed for the toughest conditions for professional semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280000 hours at full capacity and 24/7 use the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply. You can always rely on their proven and technically advanced components.Making the best even better
The reliability and long lifespan of Mastervolt s battery chargers sine wave inverters and DC-DC converters have been established beyond doubt over the past decade. While the Mass products have evolved with the latest technological developments the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime. Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions Mastervolt has developed the Green by Heart programme. Its impact on the Mass battery chargers Mass Sine inverters and Mac & Magic DC-DC converters include:
- An exceptionally effective use of the consumed input current (cos phi) > 0.98!
- Faster charging of batteries even with when the input current is limited.
- Use of top quality components with a long lifespan.
- Savings in weight and space.
- Fewer installation materials.
- Product Specifications | Download
|General specifications||General specifications|
|Output voltage ( 5%)||230 V 50 Hz ( 0.01 Hz)|
|Output waveform||true sine|
|Nom. battery voltage||12 V|
|P30 power at 40 C cos phi 1||2000 W|
|Cont. power at 40 C cos phi 1||1800 W|
|Peak load||4000 W|
|Min. battery capacity||> 200 Ah|
|Dimensions hxwxd||420 x 318 x 130 mm 16.5 x 12.5 x 5.1 inch|
|Weight||14.6 kg 32.2 lb|
|Approvals||CE E-mark ABYC A-31|
|Technical specifications||Technical specifications|
|Technology||HF switch mode|
|Low battery voltage switches off at||10 V 0.5 V|
|Low battery voltage switches on at||11 V 0.5 V|
|High battery voltage switches off at||15.5 V 0.5 V|
|High battery voltage switches on at||14.5 V 0.5 V|
|Max. ripple on DC (battery)||5% RMS|
|Input current (nominal load)||183 A|
|No-load power consumption (ON mode)||480 mA 6 W|
|No-load power consumption (standby mode)||50 mA 0.6 W|
|Min. DC fuse (slow blow)||250 A|
|Min. cable size||70 mm|
|Harmonic distortion typical||< 5%|
|Cos phi||all power factors allowed|
|Transfer system||the Masterswitch and Systemswitch can be connected to all sine wave inverters|
|Temperature range (ambient temp.)||-25 C to 80 C derating > 40 C -13 to 176 F|
|Sound level||48 dBA at 1 mtr|
|Protections||over temperature over load short circuit high battery low battery|
|MasterBus compatible||yes using a MasterBus Inverter Interface or AC power analyser|
