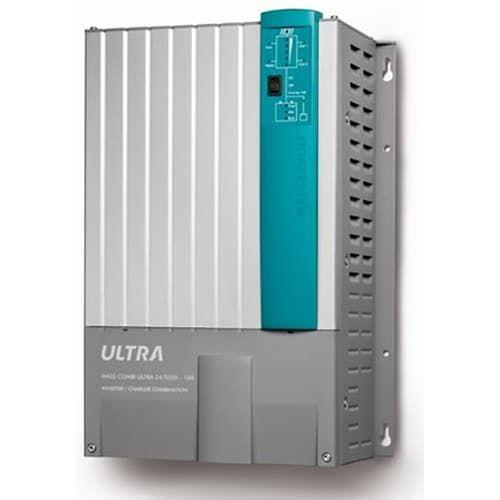

General specifications | General specifications |
Display/read-out | LED display |
Dimensions hxwxd | 472 x 318 x 175 mm 18.6 x 12.5 x 6.9 inch |
Weight | 15 kg 33.1 lb |
Approvals | CE ABYC |
Technical specifications | Technical specifications |
Charge characteristic | IUoU automatic 3-step+ for AGM/gel/Lithium Ion/flooded/flooded traction/spiral/NiCad |
Ground relay | adjustable |
Temperature range (ambient temp.) | -25 C to 60 C derating > 40 C -13 to 140 F |
Protection degree | IP23 (vertical mounting) |
Protections | over temperature AC over load AC short circuit DC short circuit high battery low battery |
MasterBus compatible | yes |
Specifications sine wave inverter | Specifications sine wave inverter |
Nom. DC voltage | 24 V (19 32 V) |
Output voltage ( 2%) | 230 V - 50/60 Hz ( 0.005%) adjustable |
Output waveform | true sine wave Thd < 1% under standard conditions |
Cont. power at 40 C cos phi 1 | 3500 W |
Surge capability | 7000 W A |
Parallel configuration | yes up to 10 standard |
3-Phase configuration | yes |
Max. efficiency | 91 % |
Max. ripple on DC (battery) | < 10% |
No-load power consumption (ON/inverter OFF/OFF) | 16 W / 2 W / 0 W |
Specifications battery charger | Specifications battery charger |
Nom. input voltage | 180 275 V |
Nom. battery voltage | 24 V |
Max. charge current at 40 C | 100 A at 28.5 V |
Charge method secondary charger | IUoU automatic 3-step+ or constant voltage |
Secondary charger output voltage | 12-24 V adjustable |
Secondary charger output current | 10 A |
Temperature sensor battery | yes included |
Specifications transfer system | Specifications transfer system |
Generator input (switched) | 50 A |
Mains input (switched) | 30 A |
AC output 1 | 67 A |
AC output 2 (switched) | 50 A |
Transfer time | seamless (UPS < 1 ms) |
Transfer voltage range (adjustable) | 180 275 V |
Transfer frequency range (adjustable) | 35 65 Hz |
Power Sharing / Generator / Mains Support | yes |
Solar input (DC) specifications | Solar input (DC) specifications |
Input voltage range | 15-100 V |
Max. PV power | 500 Wp |
Max. input current | 18 A |
Max. charge current | 15 A at 28.5 V |
MPP voltage range at nom. power | 35-80 V |
