AIMS Low Frequency Inverter Chargers
AIMS Power, PICOGLF30W12V120VR, 3000 Watt Low Freq Inverter Charger
AIMS Power, PICOGLF30W12V120VR, 3000 Watt Low Freq Inverter Charger
Oct 7th - Oct 13th
Out of Stock
Would you like to add these items to your order?
AIMS Power, REMOTELF, LCD Remote Panel
The marine-coated or conformal-coated boards also make this inverter great for mobile applications, as it protects the product from dust or water vapor that may be present in the air.
This 3000 watt inverter charger produces a pure sine wave, which some appliances require for use. This allows it to run laser jet printers, computers, televisions, CPAP machines, other medical equipment and more.
It also has a built-in 65 amp multistage smart battery charger, which uses AC power from the grid or from a fuel-powered generator, that can be used to recharge a battery bank as well.
The 3000 watt 12 volt low frequency AIMS Power inverter charger is two products in one.
The inverter transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties.
It also has a built-in 100 amp battery charger which uses AC power, like from the grid or from a fuel-powered generator, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank.
The inverter accepts 12 volts DC, which makes it great for vehicle upfitting as well as boat and RV applications that use a 12 volt battery system. The inverter outputs 120 volts AC.
The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 9000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.
Combine this inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power.
If you're looking for an inverter with similar capabilities, but without the solar charge controller, check out the 2000 watt low frequency AIMS Power inverter charger or the 1000 watt low frequency AIMS Power inverter charger.
The low frequency label has been given to this inverter because of the lowered level of total harmonic distortion (THD) produced during the DC to AC inversion process. This allows for a cleaner transfer of energy, which increases efficiency, and it also provides a quieter performance.
The marine-coated or conformal-coated boards also make this inverter great for mobile and/or coastal applications, as it protects the product from dust or water vapor that may be present in the air. This inverter will also run powerful tools like most electric chainsaws, portable grinders, shop vacs, and more.

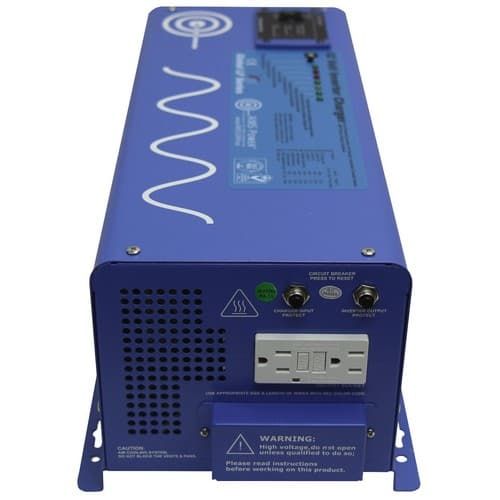

It also features one GFCI power outlet with two receptacles for easy, safe access to the usable AC current, which allow for a peak of 1,500 watts. *Important to remember: the ac outlets have no surge capacity, so you must use the direct connect terminal block to harness the surge capabilities of this inverter.
Tools with higher startup surges like a well pumps and air compressors may require an upgrade to the 6000 watt low frequency AIMS Power solar inverter charger.
This 3000 watt inverter charger produces a pure sine wave, which some appliances require for use. So it can run laser jet printers, computers, televisions, CPAP machines and other medical equipment. In the event of a power outage, this inverter combined with a battery bank can be used to power a few lights, a refrigerator and perhaps a few other necessities. ***Just always be sure to check the wattage requirements of the appliances being used before powering them with any inverter.
During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing.
Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.
This inverter also has an optional remote port, allowing you to turn the product on and off from a distance. Click here to purchase the remote.
Other popular applications for this inverter include powering lights and other appliances in an off-grid cabin, providing electricity for a mobile business or mobile office, and running camping equipment.
3000 watt low frequency inverter
9000 watt surge for 20 seconds -3x surge capability
Battery Priority Selector
Marine Coated and Protected
Multi Stage Smart charger 65 Amp
remote panel available
auto gen start
10msec typical transfer time
optional 25W power save mode
7 battery type settings for charger
Product Manual |
Inverter Output Specifications
Continuous Output Power: 3000 Watts
Surge Rating: 9000 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Typical Transfer Time: 10ms (Max)
THD: < 10% DC
Nominal Input Voltage: 12.0Vdc
Minimum Start Voltage: 10.0Vdc
Low Battery Alarm: 10.5Vdc-11.0Vdc
Low battery Trip: 10.0Vdc-10.5Vdc
High Voltage Alarm: 16.0Vdc
Low battery Voltage Restart: 15.5Vdc
Idle Consumption: <10 amps AC
Power Saver Mode Idle Consumption: <1 amps AC
Output voltage: Depends on battery Type
Charger Rate: 65A
Unit Weight: 64 lbs.
Unit Size L x W x H: 23.54 x 8.59 x 7.05 inches
Shipping Weight: 68 lbs.
Shipping L x W x H 29.13 x 12.40 x 11.81 inches
