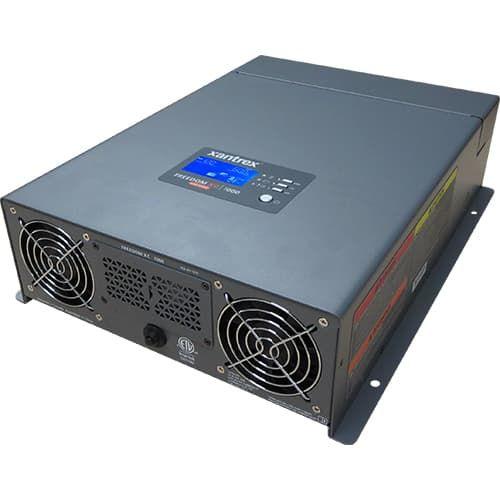

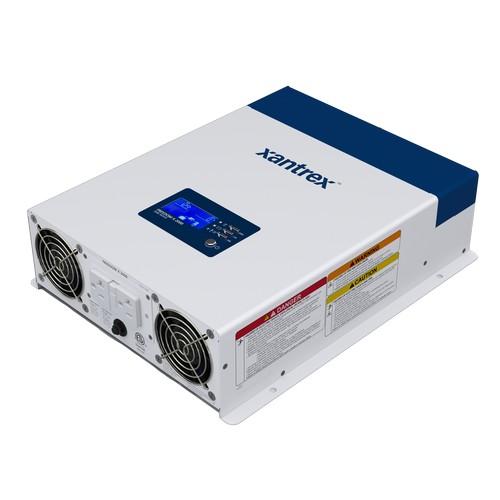

Xantrex, 817-3000, Freedom X 3000 Inverter

  • Model: 817-3000
  • GTIN: 00715535901493
  • Manufactured by: Xantrex
  • Condition: New
  • Estimated Delivery: May 18th - May 24th
  • In Stock

$1,594.79 $1,226.76

Manufacturer Info

The Xantrex Freedom X 3000 offers premium performance in a lightweight compact package. This inverter provides up to 3000 watts of continuous utility grade, sine wave power from a battery bank and is designed to handle loads such as microwave ovens, TVs, DVD/Blu-ray players, and power tools. In addition, the Freedom X 3000's extended 2 second high-surge capability lets you handle many hard-to-start loads, including full size residential refrigerators.

The Freedom X 3000 has a built-in 30 Amp transfer switch automatically transfers between inverter power and shore power from recreational facilities such as boat docks or campsites to ensure power is always available. If incoming shore power is interrupted by external events like brownouts, the Freedom X 3000 automatically becomes an independent power source that supplies utility grade AC power to your loads.

The Freedom X 3000 offers comprehensive built-in protection features to safeguard your batteries from unnecessary drain while protecting your equipment. Features include selectable low battery shutdown voltage, low voltage shutdown delay timer, power save mode, low battery voltage alarm and shutdown. The Freedom X 3000 is also features configurable AC transfer speed, output frequency, and voltage, making it extremely versatile.

Product Features
  • 3,000 watts continuous power output
  • 6,000 watts surge (peak power)
  • Extended 2 second surge for motor loads
  • True sine wave output for sensitive electronics and motors
  • Built-in 30 Amp transfer relay
  • Easy access AC & DC wiring compartment for quick installation
  • AC hardwire or plug directly into the optional 20A GFCI receptacle
  • Digital display for viewing AC & battery current
  • Configurable AC output frequency and voltage
  • Programmable Smart Battery Management logic to facilitate extended battery use & life
  • Configurable ignition lockout feature helps to minimize battery drain
  • Full output from -4F - 104F for operation in all climate temperatures
  • ETL listed to CSA 107.1
  • UL458 and UL458 Marine Supplement (drip shield with product number 808-1050 required)
  • ABYC E11, A20, A25 and A31
Protection Features
  • Battery low-voltage protection (user selectable from 10.5 to 12.8 VDC)
  • Battery over-voltage protection
  • Automatic overload protection
  • Over-temperature shutdown
  • Short-circuit protection
  • Ground-fault protection
Input 12 VDC
Output voltage 120 VAC, 60 Hz
Continuous Power 3000 W (25.0 A)
Surge Power 6000 W (50.0 A), 2 Seconds
Output waveform Pure sine wave
Transfer relay 30 A
Dimensions 15.4 x 10.8 x 4.0 in (390 x 275 x 102 mm)
Inverter weight 17.0 lbs (7.7 kg)
Shipping weight 20.0 lbs (9.1 kg)
Warranty 2 years
