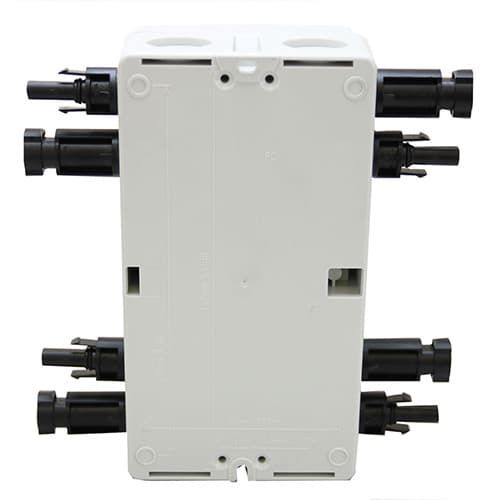

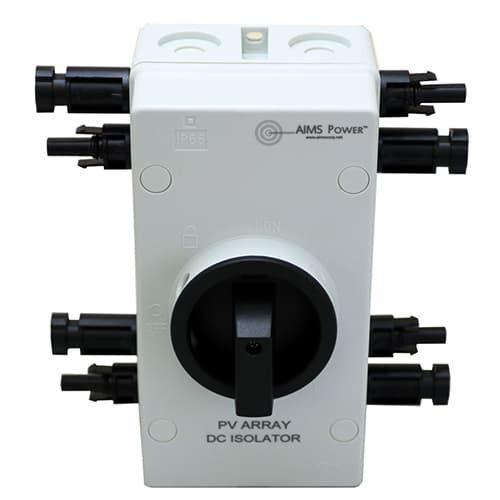

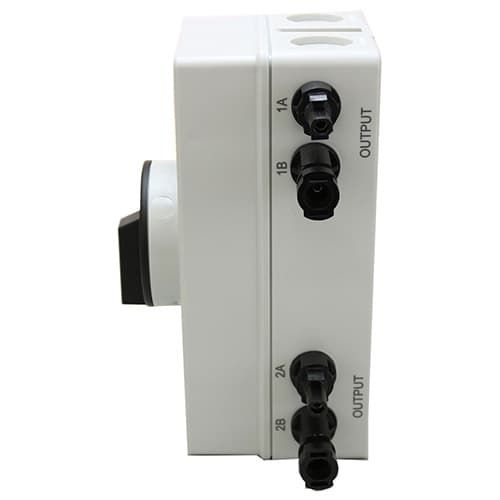

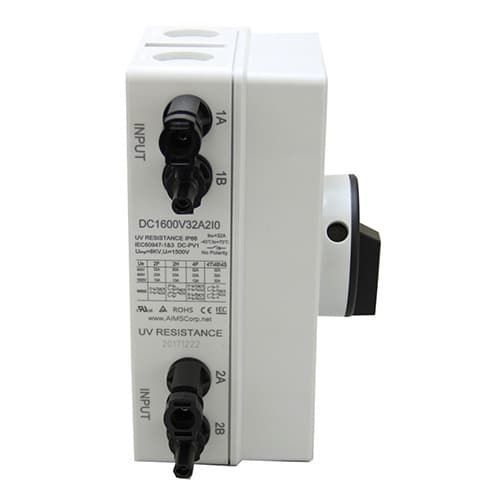

AIMS Power, DC1600V32A2IO, Solar PV DC Quick Disconnect Switch

  • Model: DC1600V32A2IO
  • GTIN: 00840271004532
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: Jun 20th - Jun 26th
  • In Stock
Price:

$148.20 $114.00

Manufacturer Info

The AIMS quick disconnect gives your solar system extra safety and flexibility when maintaining your system. New installations of solar photovoltaic systems have increased the need for disconnect switches and overcurrent protective devices capable of interrupting currents at voltages up to 600 Vdc. Some US locations require a disconnect switch. PV system arrays generate DC current and need to be disconnected for maintenance or safety. The AIMS quick disconnect switch is also ideal for applications such as cabins or vacation homes that don't require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed.

Features
  • Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter
  • Outdoor rated
  • Isolated
  • Double pull double throw 2IO
  • Lock out option
  • 2 separate circuits
  • Max combined amperage - 64 amp (2 separate 32 amp solar circuits or 1 64 amp solar circuit)
  • Output and input connections are MC4 for easy set up and install
Specifications
  • 2 - 32 amp circuits
  • Up to 1000 volts @ 32 amps
  • 4 pole
  • CE,TUV, SAA, IEC, UL certified & ROHS compliant
  • Outdoor rated
  • UV resistance UL 746C
  • Waterproof
  • Arc time <2ms
  • -40 degrees C to 70 degrees C
  • 10 year warranty
  • Dimensions: 7"H x 7"W x 4.375" D
