Product Highlights - Panel mounted hydraulic-magnetic type breakers
- Rated for 100% continuous duty cycle
- Not affected by high ambient temperatures
- Non-polarized for use in any wiring orientation
- Can be used for input, output or load circuits
- Contact OutBack for additional information

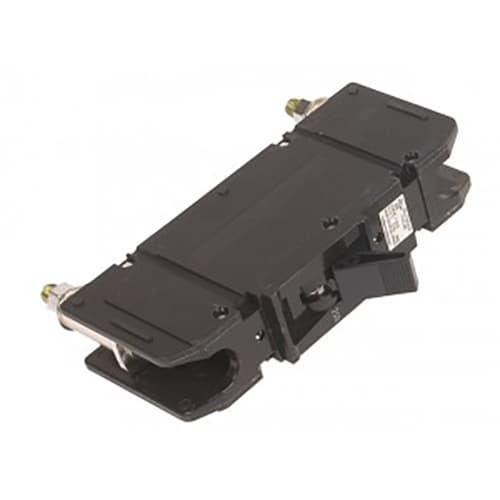

Front panel, single pole mount with stud terminals on the back. Ring terminals required.
| PNL-1-AC/DC | 1 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-5-AC/DC | 5 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-10-AC/DC | 10 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-15-AC/DC | 15 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-20-AC/DC | 20 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-30-AC/DC | 30 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-30-AC | 30 Amp, 250Vac, 1/4” stud terminals |
| PNL-40-AC/DC | 40 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-50-AC/DC | 50 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-60-AC/DC | 60 Amp, 150Vdc and 120Vac, 1/4” stud terminals |
| PNL-80-DC | 80 Amp, 150Vdc, 1/4” stud terminals |
| PNL-100-DC | 100 Amp, 125Vdc, 5/16” stud terminals |
| PNL-125-DC | 125 Amp, 125Vdc, 5/16” stud terminals |
| PNL-175-DC | 175 Amp, 125Vdc, 3/8” stud terminals |
| PNL-250-DC | 250 Amp, 125Vdc, 3/8” stud terminals |
