This 3R pre-wired MNPV4 combiner is rated for outdoor use. Designed for combining high voltage strings using standard 10mm x 38mm fuses up to 80 amps total.

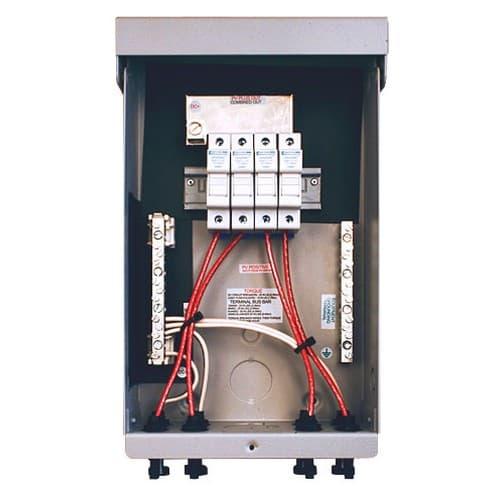

The Pre-wired MNPV4 combiner is rated for outdoor use. Designed for combining high voltage strings using 10mm x 38mm fuses up to 80 amps total. The use of touch safe din rail mount fuse holders ( MNTS) and fuses allow operation up to 600 Volts. The MNPV4 is rated for up to 80 amps.
INCLUDED FEATURES - Type 1 environmental rating
- Fast, Convenient hook up with industry standard connectors
- All aluminum powder coated housing that won't rust
- Flip up cover that can stay in the open position during installation
- PV Negative bus bar with #6 and 1/0 connections
- Chassis ground bus bar with #6 and 1/0 connections
- Standard DIN rail with (x) 30 amp touch safe fuse holders. 15 amp fuses included
- Tin plated copper bus bar that connect PV Plus outputs
- Dead front cover (MNPV6DF) snaps into place after wiring is complete for safety
- Connectors for PV in and PV out on bottom, additional knockouts on bottom and sides
- Top surface is available to bring conduit in from directly above the enclosure
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
