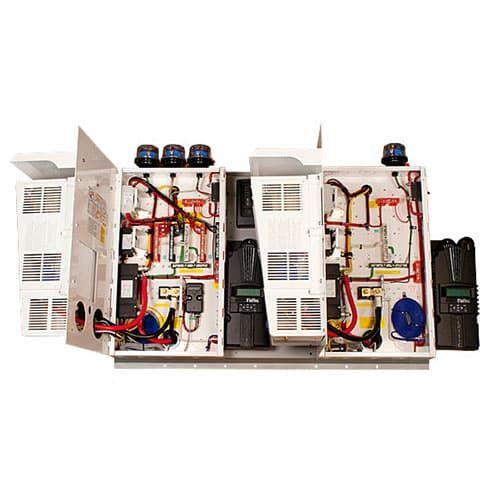

Dual Magnum 120/240VAC System.
Off Grid.
Dual 4400 Watt/48VDC Inverter.
Dual Classic 150 charge controllers
If Auto Generator Start module is needed please add "ME-AGS-N" as a separate line item on the Purchase Order.
Features - Environmental Rating - Type 1 (Indoor)
- The Whizbang Jr (MNWBJR) current sense module for the Classics provides battery state of charge and is included with this product.
- Dual MNE175STM -240 white steel E-Panels
- Dual Magnum MS4448PAE's 4400 watt 120/240 volt Inverter / charger
- Magnum Router
- Dual Classic 150 charge controllers
- Four MNEDC panel mount breakers
- Dual 175 amp Battery Main Breaker
- DC-GFP - built into the Classic
- Arc Fault Detector - built into the Classic
- Four DC-GFP (Surge Protection Devices)
- General labor for assembly, test and crating
- MidNite BTS
- Magnum BTS
- Warranty - All MidNite components have a 5 year warranty. Magnum Inverters and components are covered by Magnum's manufacturers warranty.
- Made in the USA
- Listed by ETL for US & Canada
- Price includes crating
- Hope I have all the parts! | Download
- MNEMS4024or4448PAED-2CL250_REVC | Download
- MNEMS4024or4448PAED-2CL200_REVC | Download
- MNEMS4024or4448PAED-2CL150_REV-D | Download
Our pre wired e-panels can be ordered with any of Magnum or Outback's Inverters. Please contact us for a quote if the Inverter model you need is not listed.
NOTE: MidNite does not warranty Magnum components.
